CS21-F1015CQ08-24.000M-TR

Crystals Overview

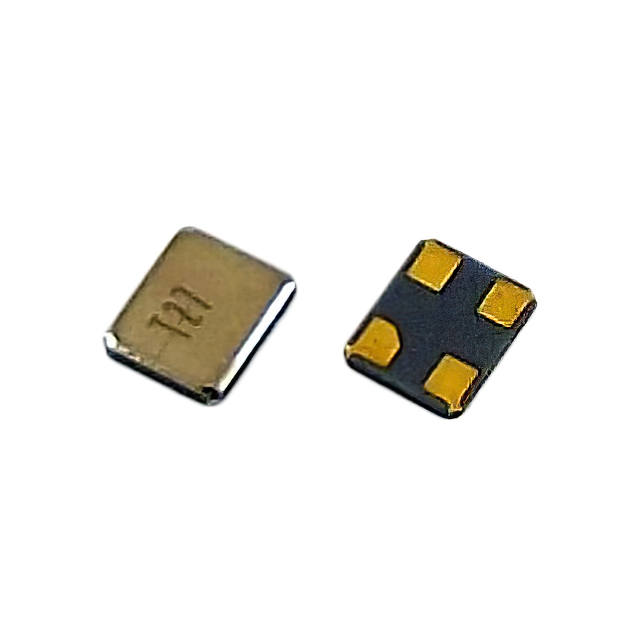

The CS21-F1015CQ08-24.000M-TR is a 24 MHz ultra-miniature ceramic surface-mount crystal manufactured by Transko Electronics, Inc. It operates with a frequency tolerance of ±10 ppm and features an 8 pF load capacitance. The component exhibits a series resistance of 80 Ohms and utilizes a 4-SMD, no-lead package configuration. Physical dimensions are specified as 2.0 x 1.6 mm for the footprint.

Crystals Feature Summary

• Ultra-miniature ceramic construction for compact circuit integration
• Surface-mount design with four pads for automated assembly
• Stable frequency generation at 24 MHz with precise tolerance

Crystals Applications

• Clock signal generation in microcontroller systems
• Timing reference for communication interfaces
• Oscillator circuits in portable electronic devices

Crystals Procurement Notes

Verify the specific suffix codes against official Transko documentation to confirm exact electrical parameters such as load capacitance and tolerance. Ensure the package type matches the required PCB footprint. Confirm RoHS compliance status if environmental regulations apply to the final product assembly.

Crystals Selection Notes

Select this component when space constraints require a 2.0 x 1.6 mm footprint. The 8 pF load capacitance must match the oscillator circuit requirements. Verify that the 80 Ohm series resistance is compatible with the driving strength of the target clock input.

Crystals Part Context

This part belongs to the CS21 series of ultra-miniature ceramic SMD crystals from Transko Electronics. The series offers various frequencies and package sizes, with this specific model providing a 24 MHz output in a small form factor suitable for dense board layouts.

Crystals Replacement Considerations

Cross-reference with other CS21 series variants for different frequencies or tolerances. Verify pin compatibility and electrical specifications before substituting with generic 24 MHz crystals from other manufacturers.
