CS22-F1010GK09-30.000M-TR

Crystals Overview

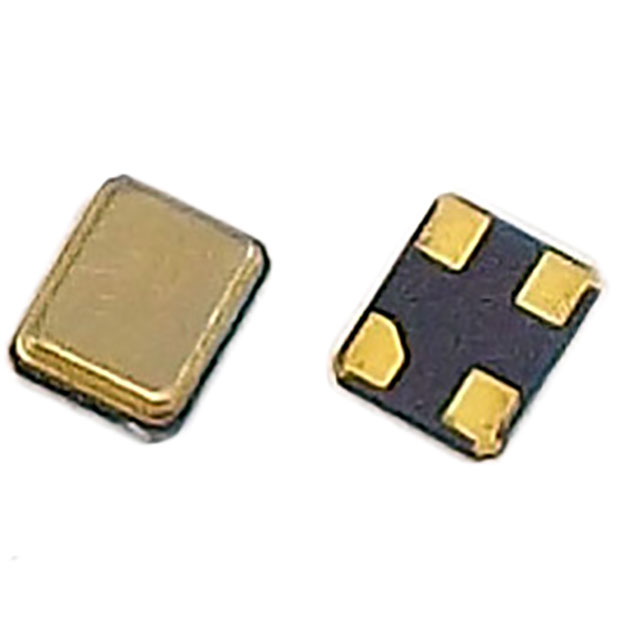

The CS22-F1010GK09-30.000M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 30 MHz with a load capacitance of 9 pF and an equivalent series resistance of 100 Ohms. The unit features a ceramic package with dimensions of 2.50 mm x 2.00 mm (0.098" L x 0.079" W). It offers a frequency stability of ±10 ppm and utilizes a 4-SMD, No Lead configuration for integration into compact electronic designs.

Crystals Feature Summary

• Ceramic surface-mount construction for robust environmental performance
• Compact 2.50mm x 2.00mm footprint suitable for space-constrained layouts
• Lead-free and RoHS compliant manufacturing process

Crystals Applications

• Automotive hybrid systems
• Electric vehicle powertrain control
• General automotive electronics

Crystals Procurement Notes

Verify the specific ordering suffix to confirm tape-and-reel packaging versus bulk quantities. Ensure the load capacitance requirement matches the host circuit design specifications. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.

Crystals Selection Notes

Select this component when a 30 MHz reference signal is required in automotive or industrial applications. The 9 pF load capacitance must align with the oscillator circuit's input requirements. Consider the 100 Ohm ESR for drive level sensitivity and ensure the physical dimensions fit the designated PCB area.

Crystals Part Context

This part belongs to the CS22 series of surface-mount crystals from Transko Electronics. The series provides various frequencies and package sizes optimized for modern SMT assembly processes. The specific model denotes a 30 MHz variant within the standard ceramic SMD family.

Crystals Replacement Considerations

Direct substitutes include other 30 MHz, 9 pF, 4-SMD ceramic crystals from manufacturers such as ECS International or TXC Corporation. Verify pin compatibility, electrical parameters, and mechanical dimensions before substitution.

Crystals FAQ

What is the physical package size of this crystal?

The package dimensions are 2.50 mm in length and 2.00 mm in width.

Is this component lead-free?

Yes, the component is lead-free and RoHS compliant.
