CS22-F1010GK09-30.000M

Crystals Overview

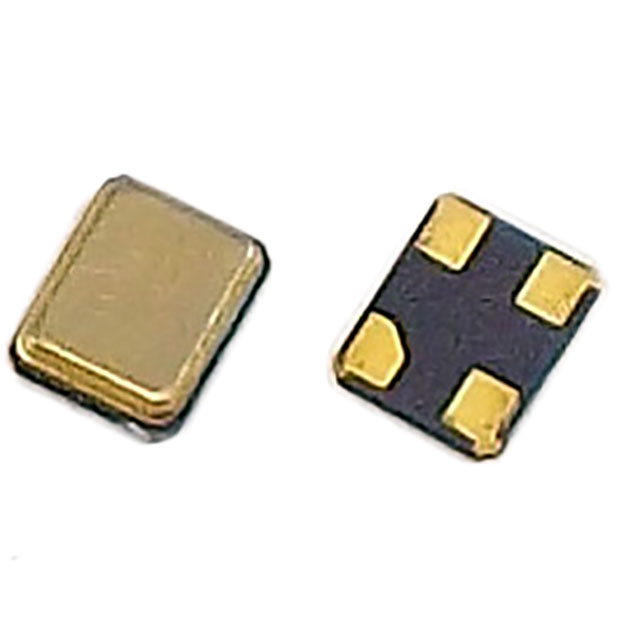

The CS22-F1010GK09-30.000M is a 30 MHz ±10ppm crystal component manufactured by Transko Electronics, Inc. It features a 9pF load capacitance and 100 Ohms impedance. The device utilizes a ceramic construction housed in a compact 4-SMD, No Lead package with dimensions of 2.5 x 2.0 x 0.55mm.

Crystals Feature Summary

• Ultra miniature ceramic SMD crystal design
• No lead surface mount configuration

Crystals Applications

• Embedded systems requiring precise timing
• Compact electronic devices with space constraints
• General purpose frequency reference circuits

Crystals Procurement Notes

Verify the specific datasheet for the CS22-F1010GK09-30.000M to confirm all electrical parameters and mechanical tolerances before integration. Ensure that the 9pF load capacitance matches the target circuit requirements. Cross-reference the manufacturer's documentation for any updates regarding material composition or environmental compliance standards.

Crystals Selection Notes

Select this component when a small form factor is critical for the PCB layout. The 30 MHz frequency and ±10ppm stability suit applications needing moderate precision. Consider the ceramic package type for standard surface mount assembly processes. Verify compatibility with the host system's clock input specifications.

Crystals Part Context

This part belongs to the CS22 series of ultra miniature ceramic SMD crystals from Transko Electronics. The series is characterized by its small footprint, specifically the 2.5 x 2.0 x 0.55mm package size. It serves as a fundamental passive frequency control element within larger electronic assemblies.

Crystals Replacement Considerations

Transko offers the TMM oscillators incorporating MEMS technology as potential alternatives for active needs. For drop-in replacements of other discontinued series, consult Transko's official substitution guides such as the CS63B for Citizen Finetech models.
