CS22-F2030EQ10-16.200M-TR

Crystals Overview

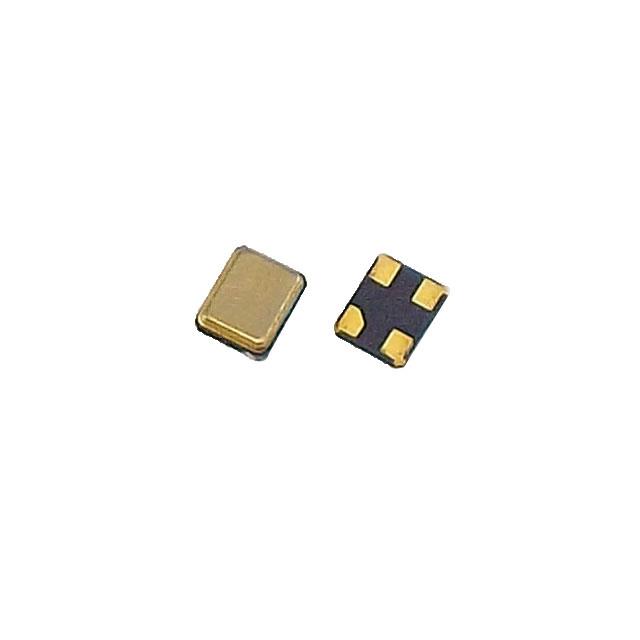

The CS22-F2030EQ10-16.200M-TR is a MHz crystal manufactured by Transko Electronics, Inc., operating at a nominal frequency of 16.2 MHz. It features a load capacitance of 10pF and an equivalent series resistance (ESR) of 150 Ohms. The component provides a frequency stability of ±30ppm and a frequency tolerance of ±20ppm. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring precise timing signals.

Crystals Feature Summary

• Ultra miniature ceramic SMD construction
• High frequency stability and tolerance specifications
• Designed for surface-mount technology integration

Crystals Applications

• General purpose timing circuits
• Microcontroller clock sources
• Communication device oscillators

Crystals Procurement Notes

Verify the specific suffix EQ10 against the target circuit design to ensure compatibility with the required load capacitance and frequency parameters. Confirm that the ±30ppm stability meets the system requirements. Check the datasheet for handling instructions related to the 4-SMD no lead package to prevent mechanical damage during assembly.

Crystals Selection Notes

Select this component when a 16.2 MHz reference is required with moderate stability needs. The 10pF load capacitance must match the oscillator circuit design. Consider the 150 Ohm ESR value for driver strength requirements. Ensure the operating temperature range aligns with the application environment.

Crystals Part Context

This part belongs to the CS22 series of ultra miniature ceramic SMD crystals from Transko Electronics. The series is characterized by small form factors suitable for space-constrained designs. The manufacturer specializes in frequency control products, offering various packages and frequencies within this line.

Crystals Replacement Considerations

Transko offers the CS22-F1010FM10-16.000M-TR as a similar crystal option, though it operates at 16.000 MHz with different stability tolerances. Verify electrical compatibility before substitution. No other direct drop-in replacements are documented for this specific frequency and package combination.
