CS28B2000

Overview

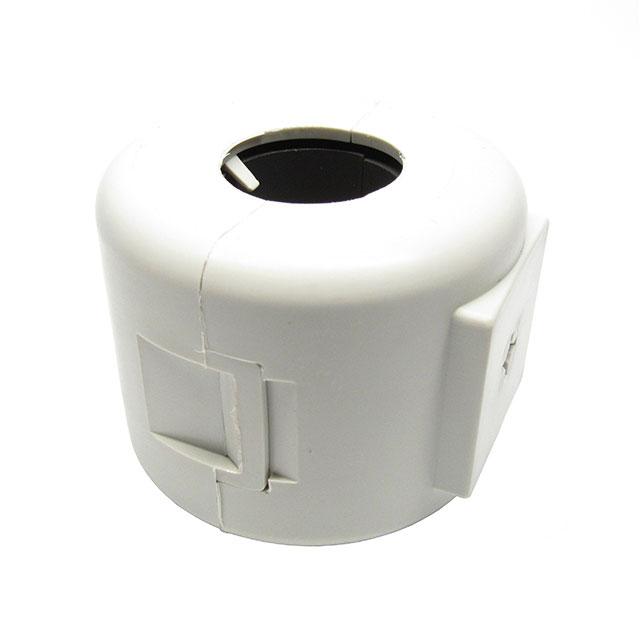

The CS28B2000 is a hinged ferrite core manufactured by Leader Tech Inc., designed for electromagnetic interference suppression in cable assemblies and wire harnesses. It features a fully enclosed nylon case housing the ferrite assembly, providing a snap-fit solution for wires and cables up to a 2-inch (50.8mm) diameter. The component has an internal diameter of 24.38mm and offers an impedance of 380 Ohms.

Feature Summary

• Hinged design allows for easy installation onto existing cable assemblies without disconnecting wires.
• Fully enclosed nylon case provides physical protection and secure containment of the ferrite material.
• Snap-fit mechanism ensures rapid deployment and stable positioning on conductors.

Applications

• Electromagnetic interference suppression in cable assemblies
• Noise reduction in wire harnesses
• EMI mitigation for cables with diameters up to 2 inches

Procurement Notes

Verify the specific part number CS28B2000 against manufacturer documentation to confirm the 380 Ohm impedance rating and 24.38mm internal diameter specifications. Ensure compatibility with cable diameters up to 50.8mm before procurement. Confirm RoHS compliance status through official datasheets or authorized distributor declarations to meet regulatory requirements.

Selection Notes

Select this component when a non-invasive EMI solution is required for large-diameter cables. The hinged nylon construction is suitable for applications where frequent access or quick installation is necessary. Verify that the 380 Ohm impedance characteristic aligns with the target noise frequency spectrum of the application.

Part Context

This component belongs to the Ferrite Cores - Cables and Wiring category from Leader Tech Inc. It is classified as an active product within the company's portfolio. The CS28B2000 serves as a specialized EMI suppression tool, distinct from solid or clamp-on cores due to its hinged, enclosed design tailored for larger wire bundles.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult Leader Tech Inc. technical support or authorized distributors for equivalent hinged ferrite cores with matching impedance and dimensional constraints.

FAQ

What is the maximum cable diameter supported by the CS28B2000?

The CS28B2000 is designed for use with wires and cables up to a 2-inch (50.8mm) diameter.

What is the impedance rating of the CS28B2000 ferrite core?

The component provides an impedance of 380 Ohms.
