CS32-F1015CQ10-26.000M

Crystals Overview

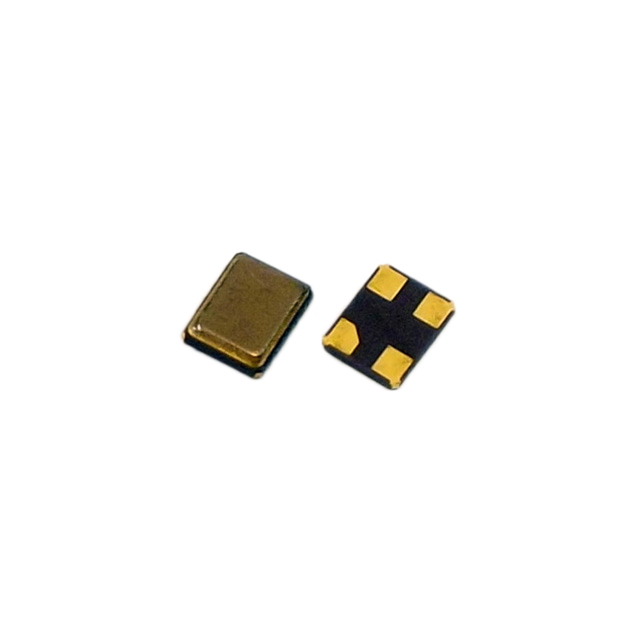

The CS32-F1015CQ10-26.000M is a 26 MHz fundamental mode quartz crystal resonator manufactured by Transko Electronics, Inc. It features a frequency tolerance of ±10 ppm and a load capacitance of 10 pF. The component utilizes a 4-SMD, No Lead package configuration with a nominal series resistance of 60 Ohms. This device is designed for surface-mount assembly and operates within standard industrial temperature ranges, providing stable oscillation frequencies for digital clock signals and timing circuits.

Crystals Feature Summary

• Fundamental mode quartz resonance for precise frequency stability
• Surface-mount compatible 4-SMD no lead package design
• Standard 10 pF load capacitance specification
• RoHS compliant manufacturing process

Crystals Applications

• Microcontroller clock input circuits
• Digital signal processing timing references
• Communication module frequency standards
• Embedded system oscillator circuits

Crystals Procurement Notes

Verify the specific suffix requirements against your bill of materials, as the -TR variant denotes tape and reel packaging while the base model may differ in shipping configuration. Confirm that the 60 Ohm impedance matches your oscillator circuit design to ensure proper start-up conditions. Ensure compatibility with your reflow soldering profile given the no-lead SMD construction. Cross-reference the ±10 ppm tolerance against your system's jitter budget requirements before finalizing procurement orders.

Crystals Selection Notes

Select this component when a fundamental mode crystal with 26 MHz output is required for space-constrained designs. The 4-SMD no lead form factor supports automated pick-and-place assembly processes. Consider the 10 pF load capacitance requirement to match your circuit's external capacitor values. Evaluate the ±10 ppm tolerance against your application's frequency accuracy needs compared to higher precision alternatives.

Crystals Part Context

This part belongs to Transko Electronics' CS32 series of surface-mount crystals. The series offers various frequency options and package sizes for general-purpose timing applications. Transko manufactures these components domestically with ISO 9001 certification, supporting quick-turn production capabilities. The CS32 line serves as a replacement source for discontinued ceramic filters and other legacy timing devices from major manufacturers.

Crystals Replacement Considerations

The CS32-F1015CQ10-26.000M-TR is a confirmed substitute part number maintaining identical electrical parameters. Verify pinout compatibility and mechanical dimensions during substitution to ensure fitment within existing PCB layouts.
