CS32-F2020CS08-27.120M-TR

Crystals Overview

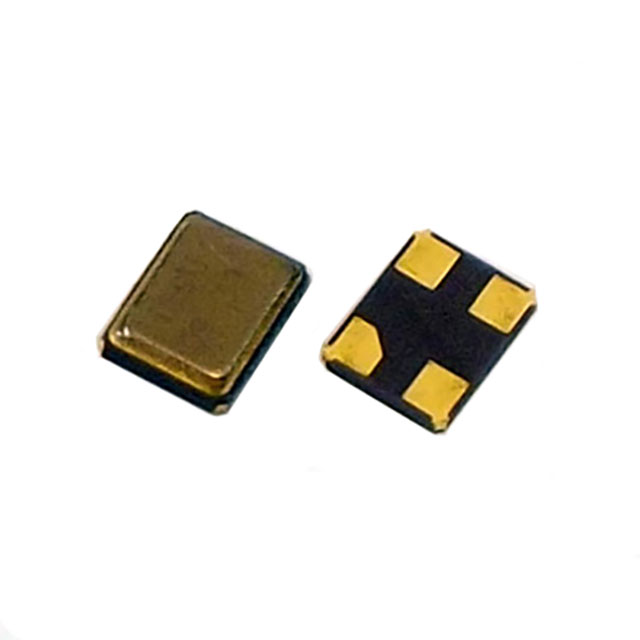

The CS32-F2020CS08-27.120M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc., designed for precision timing applications. It operates at a fundamental frequency of 27.12 MHz with a tolerance of ±20 ppm. The component features an 8 pF load capacitance and a series resistance of 60 Ohms. It is housed in a compact 4-SMD, No Lead package with dimensions of 3.2 x 2.5 mm. The device is supplied in Tape & Reel (TR) packaging to facilitate automated assembly processes.

Crystals Feature Summary

• Compact 4-SMD surface-mount design suitable for space-constrained PCB layouts
• High frequency stability with ±20 ppm tolerance for precise timing requirements
• RoHS compliant construction supporting environmentally friendly manufacturing standards

Crystals Applications

• Digital signal processing circuits requiring stable clock references
• Communication modules utilizing 27.12 MHz carrier frequencies
• Microcontroller-based systems needing accurate timekeeping sources

Crystals Procurement Notes

Verify the specific suffix 'TR' confirms Tape & Reel packaging when ordering. Ensure the load capacitance requirement of your circuit matches the specified 8 pF to maintain frequency accuracy. Confirm RoHS compliance status if environmental regulations apply to your production line. Cross-reference the exact part number with official distributor catalogs to avoid substitution errors.

Crystals Selection Notes

Select this component when a 27.12 MHz frequency is required with moderate stability. The 4-SMD package offers a balance between size and manufacturability. Consider the 60 Ohm series resistance impact on drive level sensitivity. Evaluate the ±20 ppm tolerance against system jitter requirements before finalizing the design choice.

Crystals Part Context

This part belongs to the CS32 series of miniature ceramic SMD crystals from Transko Electronics. The series typically covers frequencies from 1 MHz to 137 MHz in various SMD packages. The CS32-F2020CS08 variant specifically denotes the 3.2 x 2.5 mm footprint and 8 pF load capacitance configuration within the product family.

Crystals Replacement Considerations

Direct substitutes must match the 27.12 MHz frequency, 8 pF load capacitance, and 4-SMD package dimensions. Verify equivalent electrical parameters such as series resistance and stability tolerance. Check for compatible operating temperature ranges and RoHS compliance before implementing any alternative components.
