CS32-F2030CQ12-25.000M-TR

Crystals Overview

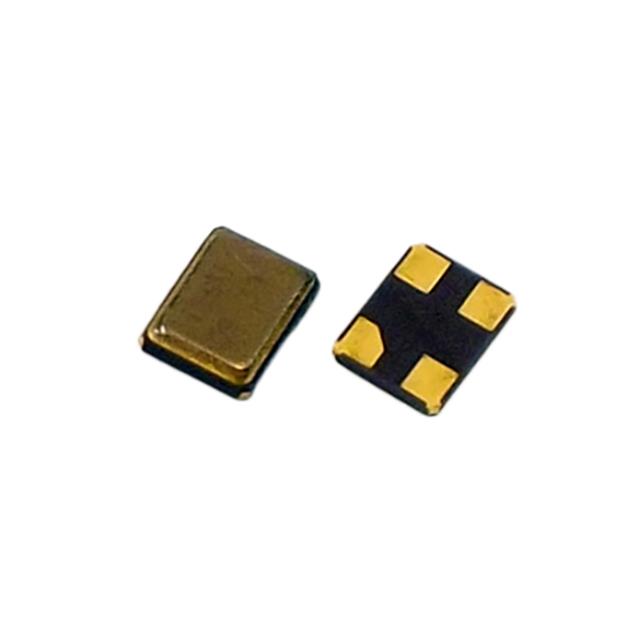

The CS32-F2030CQ12-25.000M-TR is a parallel fundamental quartz crystal manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 25 MHz with a load capacitance of 12 pF and an equivalent series resistance of 60 Ohms. The component features a ±20 ppm frequency tolerance and utilizes a 4-SMD, no lead package with dimensions of 3.2 x 2.5 mm.

Crystals Feature Summary

• Parallel fundamental resonance configuration for stable oscillation
• Miniature surface-mount design suitable for space-constrained PCB layouts
• Robust frequency stability within specified operating temperature ranges

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific load capacitance requirement of the target oscillator circuit matches the 12 pF specification to ensure accurate frequency performance. Confirm that the 60 Ohm ESR aligns with the driver strength capabilities of the host device. Ensure the 4-SMD footprint matches the board layout silkscreen and pad design to prevent assembly defects during SMT processes.

Crystals Selection Notes

Select this component when a 25 MHz reference with high precision is required in a compact form factor. The 12 pF load capacitance dictates compatibility with specific oscillator topologies. Consider the ±20 ppm tolerance against system jitter requirements. The no-lead SMD package offers advantages for automated assembly compared to through-hole alternatives.

Crystals Part Context

This part belongs to the CS32 series of miniature ceramic SMD crystals from Transko Electronics. These components are designed for general-purpose timing applications where size reduction is critical. The series typically includes various frequencies and load capacitances to support diverse digital circuit requirements across consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes must match the 25 MHz frequency, 12 pF load capacitance, 60 Ohm ESR, and 4-SMD no-lead package dimensions. Verify that alternative manufacturers provide equivalent ±20 ppm tolerance and compatible operating temperature ranges to maintain system timing integrity.
