CS32-F2030CQ15-24.750M

Crystals Overview

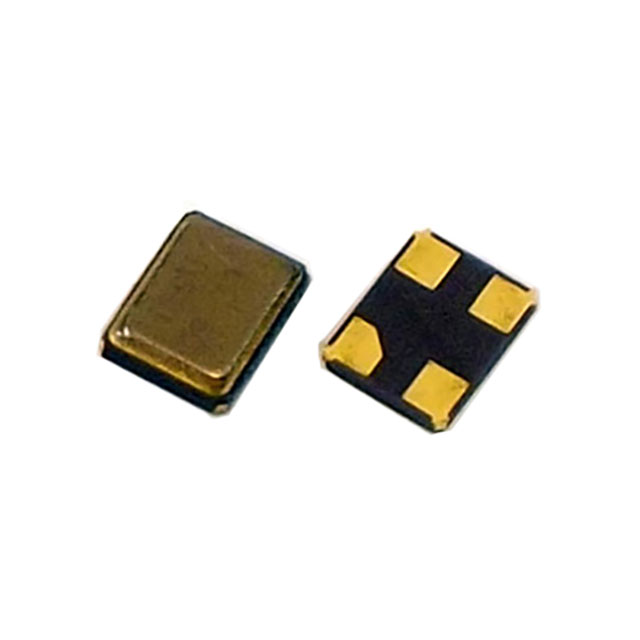

The CS32-F2030CQ15-24.750M is a ceramic crystal oscillator manufactured by Transko Electronics, Inc., operating at a nominal frequency of 24.75 MHz. It features a frequency tolerance of ±20ppm and utilizes a load capacitance of 15pF with a series resistance of 60 Ohms. The component is housed in a compact 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm. This surface-mount device is designed for integration into electronic circuits requiring precise timing signals.

Crystals Feature Summary

• Compact ultra-miniature surface-mount design suitable for space-constrained applications
• Stable ceramic construction providing reliable frequency generation
• Lead-free termination compliant with modern assembly standards

Crystals Applications

• Portable wireless devices
• Electronic beacons
• Rescue systems

Crystals Procurement Notes

Verify the specific ordering suffix to ensure the correct load capacitance and frequency tolerance match the circuit requirements. Confirm that the 4-SMD no-lead package style aligns with the PCB footprint and reflow soldering profiles used in the manufacturing process. Cross-reference the manufacturer's latest datasheet to validate active status and any recent specification updates before finalizing procurement.

Crystals Selection Notes

Select this component when a 24.75 MHz reference signal is required within a strict size constraint defined by the 3.2x2.5mm footprint. Ensure the system design can accommodate the specified 15pF load capacitance to maintain accuracy within the ±20ppm tolerance. Consider the 60 Ohm series resistance when evaluating drive level sensitivity and power consumption constraints in the target application environment.

Crystals Part Context

This part belongs to the CS32 series of ultra-miniature ceramic SMD crystals from Transko Electronics. The series is characterized by small physical dimensions, specifically 3.2mm x 2.5mm, targeting high-density board layouts. The CS32-F2030CQ15-24.750M represents a specific frequency variant within this family, utilizing standard ceramic resonator technology for cost-effective timing solutions.

Crystals Replacement Considerations

Direct substitutes must match the 24.75 MHz frequency, 15pF load capacitance, and 4-SMD 3.2x2.5mm package dimensions. Verify equivalent electrical parameters such as series resistance and stability ratings. Consult manufacturer cross-reference lists for pin-compatible alternatives with identical mechanical and electrical specifications.
