CS32-F2050CQ12-28.640M-QTR

Crystals Overview

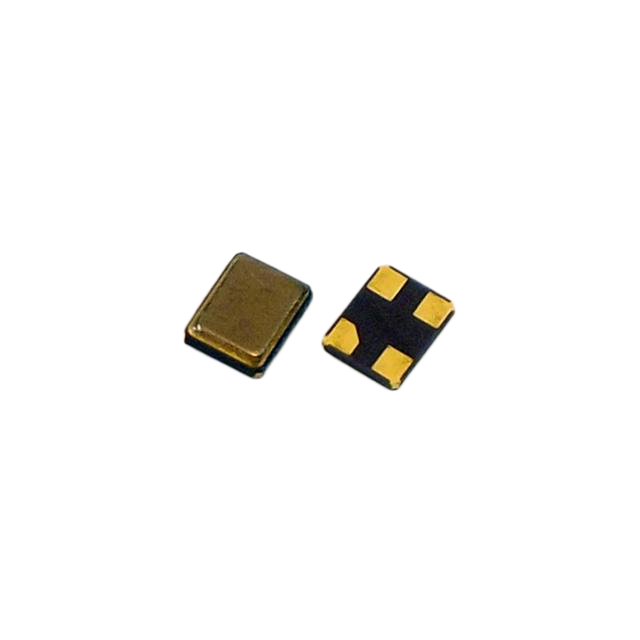

The CS32-F2050CQ12-28.640M-QTR is a miniature ceramic surface-mount crystal manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 28.640 MHz with a load capacitance of 12 pF. The component utilizes a 4-SMD, No Lead package configuration, specifically designed for compact electronic applications requiring precise frequency control.

Crystals Feature Summary

• Miniature ceramic construction for space-constrained designs
• Surface-mount technology for automated assembly
• Fundamental mode quartz resonance

Crystals Applications

• General purpose frequency control in consumer electronics
• Microcontroller clock sources
• Communication module timing circuits

Crystals Procurement Notes

Verify the specific suffix QTR against official Transko documentation to confirm tape and reel packaging requirements. Ensure the load capacitance matches the target circuit design before procurement. Cross-reference the part number with the manufacturer's current datasheet to validate availability and exact physical dimensions.

Crystals Selection Notes

Select this component when a 28.640 MHz reference is required in a small form factor. Consider the 12 pF load capacitance compatibility with the host oscillator circuit. Evaluate the SMD package suitability for the intended PCB layout and reflow soldering processes compared to through-hole alternatives.

Crystals Part Context

This part belongs to the CS32 series of miniature ceramic crystals from Transko Electronics. The series is characterized by its small footprint and reliability for mass-produced electronic devices. It serves as a passive frequency-determining element within active oscillator circuits.

Crystals Replacement Considerations

Direct substitutes must match the 28.640 MHz frequency, 12 pF load capacitance, and 4-SMD package dimensions. Verify equivalent electrical parameters such as ESR and stability before substitution.
