CS325S24576000ABJT

Crystals Overview

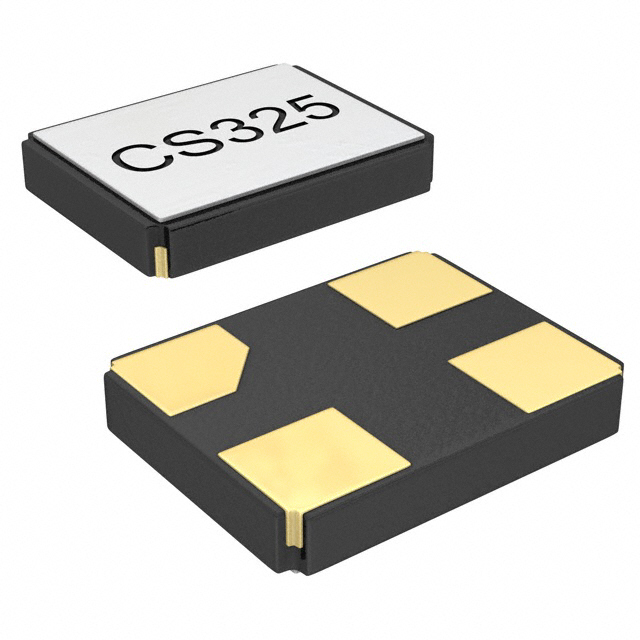

The CS325S24576000ABJT is a surface-mount crystal oscillator manufactured by Citizen FineDevice. It operates at a fundamental frequency of 24.576 MHz with a load capacitance of 18 pF. The component features a frequency tolerance of ±30 ppm and a total frequency stability of 50 ppm over the operating temperature range of -10°C to +60°C. It utilizes an AT-cut crystal element housed in a compact 3.2 mm x 2.5 mm SMD package. The unit weighs approximately 16 mg and supports reflow soldering processes for automated assembly.

Crystals Feature Summary

• AT-cut resonator technology ensures stable oscillation characteristics
• Compact surface-mount design facilitates high-density PCB layouts
• Optimized for low power consumption applications

Crystals Applications

• Clock generation for microcontrollers and digital logic circuits
• Timing references for communication interfaces
• Frequency standards for consumer electronic devices

Crystals Procurement Notes

Verify that the specific ordering suffix matches the required frequency tolerance and load capacitance specifications for your circuit design. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure storage conditions adhere to recommended guidelines to maintain component integrity before soldering.

Crystals Selection Notes

Select this component when a precise 24.576 MHz reference is required within a limited board area. Consider the -10°C to +60°C operational range against your environmental constraints. Evaluate the 18 pF load capacitance requirement against your oscillator circuit design to ensure accurate frequency performance.

Crystals Part Context

This part belongs to the CS325S series of surface-mount crystals from Citizen FineDevice. The series offers various frequencies in a standardized small footprint, providing designers with consistent mechanical dimensions across different frequency options while maintaining reliable electrical performance for general-purpose timing applications.

Crystals Replacement Considerations

Direct substitutes include other CS325S series variants with identical 24.576 MHz frequency and 18 pF load capacitance. Verify equivalent package dimensions and electrical parameters before substitution.
