CS33B1805

Overview

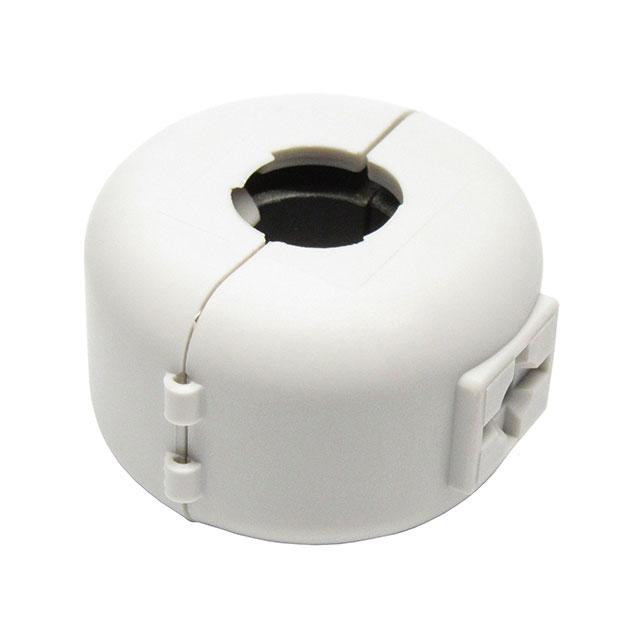

The CS33B1805 is a round cable ferrite core manufactured by Leader Tech Inc. It features a hinged snap-on design for free-hanging installation. The component provides an impedance of 22 Ohms at 30MHz. Internal dimensions are 0.340 inches (8.64mm) in diameter, while external dimensions measure 1.025 inches (26.04mm) in diameter and 1.040 inches (26.42mm) in length. It is classified as a circular filter type.

Feature Summary

• Hinged snap-on construction allows for easy installation around existing cables without disconnection.
• Free-hanging mounting style provides flexible positioning within equipment enclosures.
• Round geometry accommodates standard cylindrical cable bundles.

Applications

• Electromagnetic interference suppression on signal and power cables
• Common mode noise reduction in electronic assemblies
• Cable filtering in industrial control systems

Procurement Notes

Verify the specific manufacturer part number CS33B1805 against official datasheets to confirm impedance characteristics and physical dimensions. Ensure compatibility with cable diameters not exceeding 0.340 inches. Check for RoHS compliance status if required by project specifications. Confirm packaging details such as bulk quantities from authorized distributors.

Selection Notes

Select this component when a round, snap-on ferrite core is required for cables up to 8.64mm in diameter. The 22 Ohm impedance at 30MHz suits general EMI suppression needs. Consider the free-hanging form factor for applications where rigid mounting is impractical. Verify that the hinged mechanism meets mechanical durability requirements for the intended environment.

Part Context

This component belongs to the Leader Tech Inc. cable ferrite core product line. It is designed for electromagnetic interference filtering. The hinged design distinguishes it from split-core or solid-loop variants. It serves as a passive component for noise attenuation in electronic circuits.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided documentation. Verify electrical and dimensional compatibility before considering alternative manufacturers.

FAQ

What is the maximum cable diameter this core can accommodate?

The internal diameter is 0.340 inches (8.64mm), defining the maximum cable size.

How is the CS33B1805 installed?

It uses a hinged snap-on design for free-hanging installation around cables.
