CS4335-KSZ

Digital To Analog Converters Overview

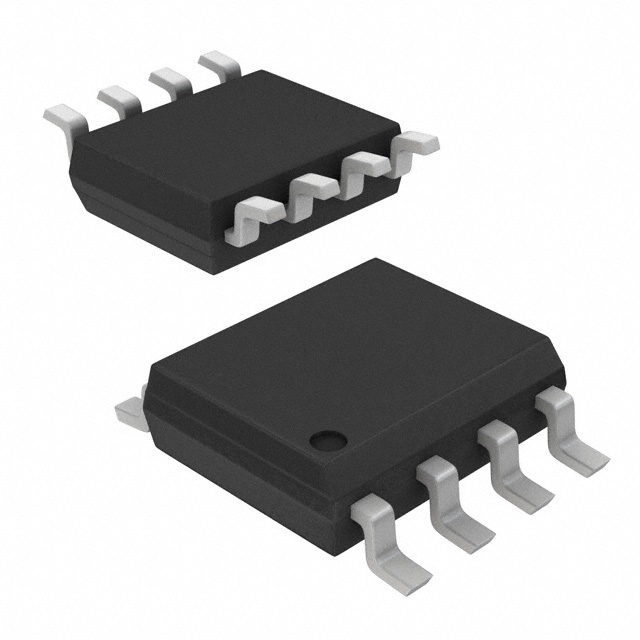

The CS4335-KSZ is a stereo digital-to-analog converter manufactured by Cirrus Logic. It features a 24-bit resolution and supports sampling rates up to 96 kHz using a delta-sigma architecture. The device operates on a single 5V supply and includes an integrated inverting charge pump for core logic regulation. It utilizes a serial interface for data input and provides analog voltage outputs. The component is housed in an 8-pin SOIC package with dimensions of 5mm length and 1.7mm height. It functions within a temperature range of -10°C to 70°C.

Digital To Analog Converters Feature Summary

• Integrates a multi-bit delta-sigma modulator for high linearity and jitter tolerance
• Includes an internal inverting charge pump and regulator eliminating external components
• Features low-latency digital filtering supporting standard audio sample rates

Digital To Analog Converters Applications

• Audio systems requiring ground-centered output architectures
• Consumer electronics utilizing single-supply operation
• Digital audio playback devices

Digital To Analog Converters Procurement Notes

Verify the specific suffix K-SZ against official manufacturer documentation to confirm pinout compatibility and electrical specifications. Ensure the source document explicitly identifies this part number as a distinct variant rather than a generic family member. Cross-reference the datasheet revision date to validate current manufacturing status and compliance certifications before procurement.

Digital To Analog Converters Selection Notes

Select this component when a single 5V supply is available and an integrated charge pump is required to generate negative voltages for the core logic. The 8-pin SOIC package suits applications with limited board space. Confirm that the 96 kHz maximum sampling rate meets the system requirements, as higher-speed variants exist within the product family.

Digital To Analog Converters Part Context

This component belongs to the Cirrus Logic CS43xx series of stereo audio DACs. It shares architectural similarities with the CS4334 but may differ in specific packaging or suffix designations. The series is characterized by its use of multi-bit delta-sigma modulation to achieve high dynamic range without complex external filtering networks.

Digital To Analog Converters Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided reference material. Verify functional equivalence with other models in the CS43xx series only if official documentation confirms identical pinouts and electrical characteristics.
