CS53A-1401-25.000M

Crystals Overview

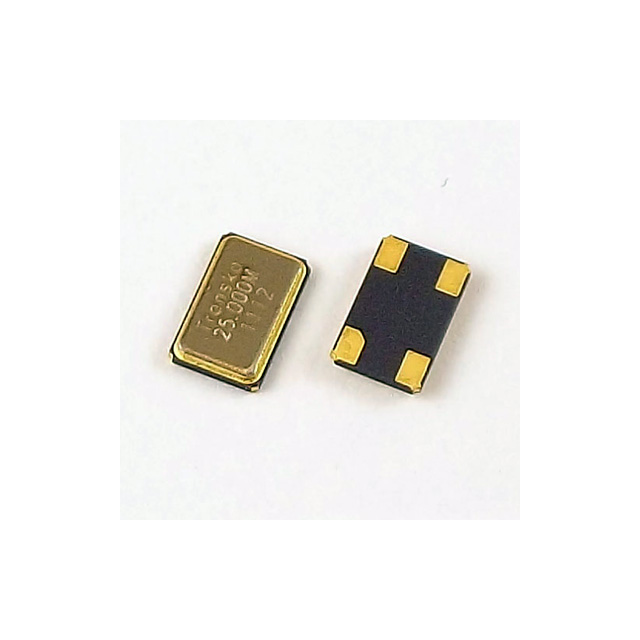

The CS53A-1401-25.000M is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 25.0000 MHz with a load capacitance of 18 pF. The component features a 4-SMD, No Lead package and exhibits an equivalent series resistance of 15 Ohms. Frequency tolerance is specified at ±30 ppm. The device is lead-free and RoHS compliant, designed for integration into compact electronic circuits requiring precise timing references.

Crystals Feature Summary

• Surface-mount design utilizing no-lead SMD packaging for automated assembly compatibility
• Fundamental mode quartz crystal operation providing stable frequency generation
• RoHS compliant construction ensuring environmental safety standards adherence

Crystals Applications

• General purpose digital circuit timing references
• Microcontroller clock source integration
• Communication module frequency stabilization

Crystals Procurement Notes

Verify the specific suffix codes against official Transko documentation to confirm exact electrical tolerances and package dimensions. Ensure that the requested quantity matches available stock levels as inventory fluctuates. Confirm RoHS compliance status through current manufacturer certificates prior to final procurement approval.

Crystals Selection Notes

Select this component when a 25 MHz fundamental frequency with 18 pF load capacitance is required. The 15 Ohm ESR specification suits applications with moderate drive level constraints. The 4-SMD form factor is appropriate for space-constrained PCB layouts requiring surface-mount technology integration.

Crystals Part Context

This part belongs to the CS53A series of miniature ceramic SMD crystals from Transko Electronics. The series offers various frequency options within standard industrial ranges. The CS53A designation indicates a specific footprint and electrical characteristic set distinct from other Transko oscillator families like TMM or OX-P.

Crystals Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model. Cross-referencing requires matching frequency, load capacitance, ESR, and package dimensions exactly.
