CS53A-F2020FK06-13.560M-TR

Crystals Overview

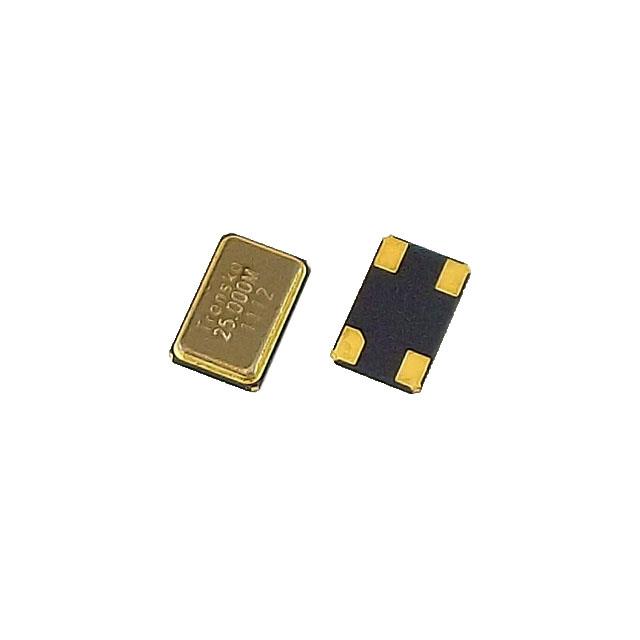

The CS53A-F2020FK06-13.560M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc., designed for precise timing applications. It operates at a nominal frequency of 13.56 MHz with a frequency stability and tolerance of ±20ppm. The component features a load capacitance of 6pF and an equivalent series resistance (ESR) of 50 Ohms. It is housed in a compact 4-SMD, No Lead package with dimensions of 0.197 inches in length and 0.126 inches in width, suitable for automated assembly processes.

Crystals Feature Summary

• Provides stable frequency generation with ±20ppm tolerance
• Compact 4-SMD surface mount package design
• Optimized for low power consumption applications

Crystals Applications

• RFID reader circuits
• Wireless communication modules
• Industrial control systems

Crystals Procurement Notes

Verify the specific suffix FK06 against official Transko documentation to ensure compatibility with required load capacitance and ESR specifications. Confirm that the 4-SMD no-lead package matches your PCB footprint requirements. Request the latest datasheet directly from the manufacturer or authorized distributors to validate current production status and environmental compliance certifications before placing orders.

Crystals Selection Notes

Select this component when a 13.56 MHz reference signal is required for RFID or NFC applications. Ensure the system design accommodates the 6pF load capacitance to maintain frequency accuracy. Consider the 50 Ohm ESR value for impedance matching in the oscillator circuit. Verify that the operating temperature range meets the application's environmental constraints.

Crystals Part Context

This part belongs to the CS53A series of crystals from Transko Electronics, which specializes in precision timing components. The series includes various frequencies and packages, catering to diverse electronic needs. Transko is an ISO 9001 certified manufacturer known for quick-turn domestic production capabilities, ensuring reliable supply for critical timing elements in consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes must match the 13.56 MHz frequency, ±20ppm stability, 6pF load capacitance, and 4-SMD package. Cross-reference with other manufacturers' 13.56 MHz crystals in similar SMD footprints if availability is an issue, ensuring electrical parameters align precisely.
