CS53B-F3050CQ18-19.200M-TR

Crystals Overview

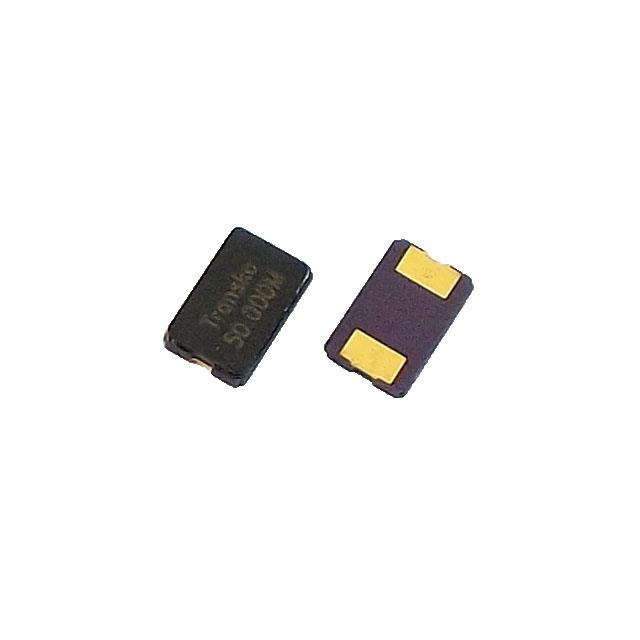

The CS53B-F3050CQ18-19.200M-TR is a fundamental mode quartz crystal resonator manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 19.2 MHz with a frequency tolerance of ±30ppm and a load capacitance of 18pF. The component features an equivalent series resistance (ESR) of 50 Ohms and utilizes a 2-SMD, No Lead package configuration.

Crystals Feature Summary

• Fundamental oscillation mode operation
• Surface mount no lead package design
• Standard load capacitance specification

Crystals Applications

• Clock signal generation in digital circuits
• Frequency reference for microcontrollers
• Timing sources for communication interfaces

Crystals Procurement Notes

Verify the exact datasheet specifications directly from Transko Electronics, Inc. before integration. Confirm that the 19.2 MHz frequency and 18pF load capacitance align with the target circuit design requirements to ensure proper oscillator performance.

Crystals Selection Notes

Select this component when a precise 19.2 MHz timing source is required in a compact surface mount footprint. Ensure the application supports fundamental mode crystals and can accommodate the specified 50 Ohm ESR within the oscillator circuit constraints.

Crystals Part Context

This part belongs to the CS53B series of quartz crystals from Transko Electronics. The series offers various frequencies and packages, providing options for different timing needs in consumer and industrial electronics while maintaining standard reliability metrics.

Crystals Replacement Considerations

Direct substitutes must match the 19.2 MHz frequency, 18pF load capacitance, and 2-SMD no lead package dimensions. Verify equivalent ESR and tolerance ratings to maintain circuit stability.
