CS63A-F2525CQ10-14.7456M-TR

Crystals Overview

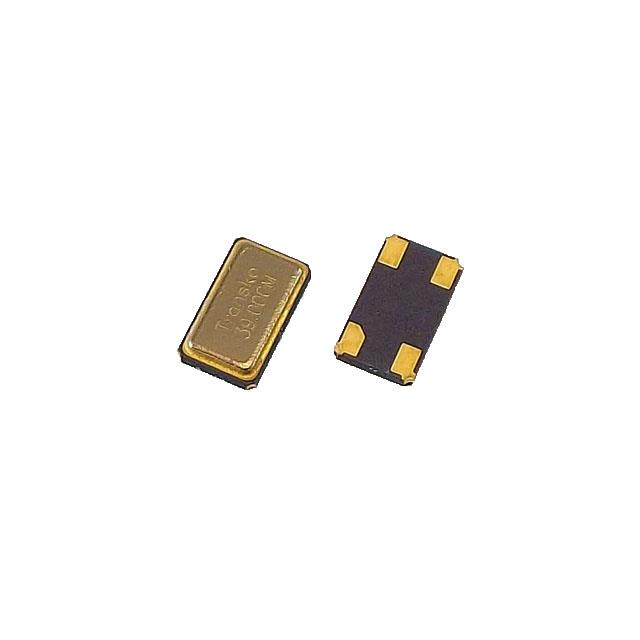

The CS63A-F2525CQ10-14.7456M-TR is a quartz crystal resonator manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 14.7456 MHz with a frequency tolerance of ±25 ppm. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 40 Ohms. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring precise frequency control.

Crystals Feature Summary

• Quartz crystal resonator providing stable frequency generation
• Surface-mount design with no lead configuration
• Defined load capacitance and ESR specifications

Crystals Applications

• Telecommunications equipment
• Frequency synthesizers
• Consumer electronics requiring clock signals

Crystals Procurement Notes

Verify the specific suffix CQ10 matches the required load capacitance and tolerance for your circuit design. Confirm the 4-SMD package dimensions against your PCB footprint. Ensure the 14.7456 MHz frequency aligns with system timing requirements before finalizing procurement.

Crystals Selection Notes

Select this component when a 14.7456 MHz reference with ±25 ppm stability is required. The 10 pF load capacitance must match the oscillator circuit's input capacitance. Consider the 40 Ohm ESR for drive level limitations. This part suits space-constrained designs due to its SMD form factor.

Crystals Part Context

This crystal belongs to Transko's CS63A series of surface-mount resonators. The series offers various frequencies and packages. The CS63A line is utilized in applications demanding reliable frequency control. Transko manufactures these components in the United States under ISO 9001 certification.

Crystals Replacement Considerations

Direct substitutes require identical 14.7456 MHz frequency, 10 pF load capacitance, and 4-SMD package. Verify ESR compatibility with existing oscillator circuits. Cross-reference pinout and mechanical dimensions for direct board replacement.
