CS63B-F3050CQ12-48.000M-TR

Crystals Overview

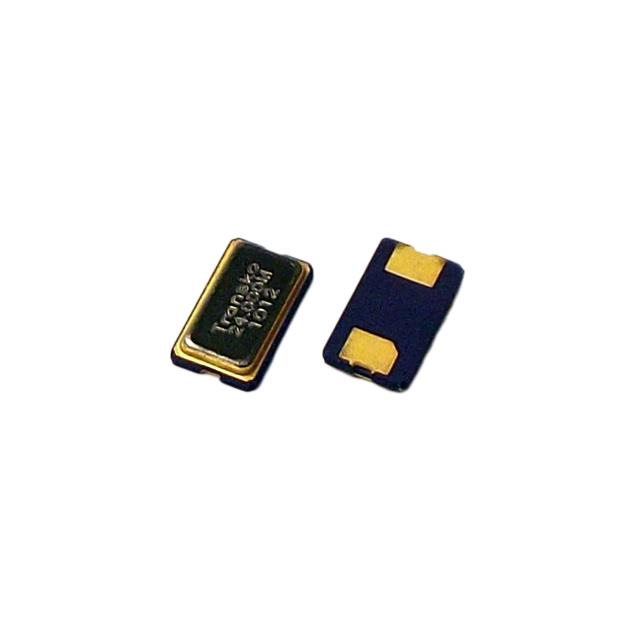

The CS63B-F3050CQ12-48.000M-TR is a 48.000 MHz parallel fundamental quartz crystal manufactured by Transko Electronics, Inc. It features an 18 pF load capacitance and a maximum series resistance of 40 Ohms. The component operates within a standard temperature range of 0°C to 70°C and exhibits a frequency tolerance of ±30 ppm. Designed for surface mount applications, it utilizes a miniature ceramic package with dimensions of 6.0 mm in length and 3.5 mm in width.

Crystals Feature Summary

• Parallel fundamental quartz crystal construction
• Miniature ceramic surface mount package
• RoHS compliant manufacturing

Crystals Applications

• General purpose clock signal generation
• Microcontroller oscillator circuits
• Digital communication interfaces

Crystals Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging configuration when sourcing. Confirm that the 18 pF load capacitance matches the target circuit design requirements. Ensure the operating temperature range of 0°C to 70°C aligns with the environmental conditions of the intended application before finalizing procurement decisions.

Crystals Selection Notes

Select this component when a 48.000 MHz reference frequency is required for synchronous digital systems. The 40 Ohm maximum series resistance suits low-power oscillator designs. The 6.0 x 3.5 mm footprint provides a compact solution for space-constrained printed circuit board layouts compared to larger through-hole alternatives.

Crystals Part Context

This part belongs to the CS63B series of surface mount crystals from Transko Electronics. The series offers various frequency options within the standard range. The model designation includes specific parameters for load capacitance and tolerance, ensuring compatibility with standard microcontroller oscillator inputs without requiring external tuning components.

Crystals Replacement Considerations

Direct substitutes must match the 48.000 MHz frequency, 18 pF load capacitance, and 6.0 x 3.5 mm package dimensions. Verify equivalent electrical characteristics such as series resistance and stability specifications to ensure functional parity in existing designs.
