CS8151YT7

$2.43

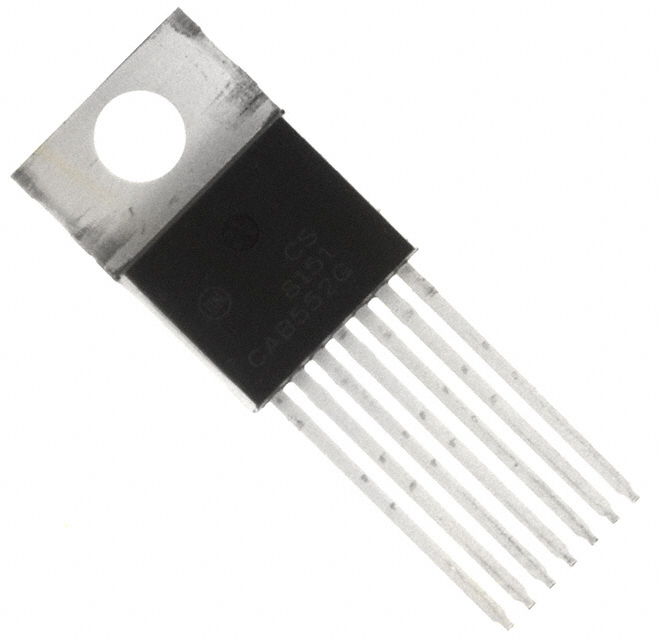

Description：IC REG LINEAR 5V 100MA TO220-7
Series：-
Mfr：onsemi
Package：Tube,Tube

SKU:8143ccb41bc8 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CS8151YT7 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists onsemi. Its product description is IC REG LINEAR 5V 100MA TO220-7. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for CS8151YT7

Description：IC REG LINEAR 5V 100MA TO220-7
Series：-
Mfr：onsemi
Package：Tube,Tube
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：26V
Voltage - Output (Min/Fixed)：5V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.6V @ 100mA
Current - Output：100mA
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：75dB (120Hz)
Control Features：Reset, Wake-Up, Watchdog
Protection Features：Over Temperature, Over Voltage, Short Circuit
Operating Temperature：-40°C ~ 125°C
Mounting Type：Through Hole
Package / Case：TO-220-7
Supplier Device Package：TO-220-7
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for CS8151YT7

CS8151YT7

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The CS8151YT7G is a fixed-output linear voltage regulator manufactured by onsemi. It provides a stable 5V output with a maximum current capacity of 100mA. The device features a low dropout voltage of 0.6V at full load and supports an input voltage range up to 26V. Integrated protection mechanisms include thermal shutdown, overvoltage protection, and short-circuit limiting. The component operates within a temperature range of -40°C to 125°C and is housed in a TO-220-7 through-hole package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Integrated power-on reset generator with delay reset functionality
Built-in watchdog timer for system monitoring
Wake-up capability for low-power applications
Comprehensive protection against thermal overload and output shorts

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Microcontroller power supply systems requiring reset management
Industrial control units needing watchdog supervision
Embedded systems with wake-up trigger requirements
Low-dropout regulation for 5V logic circuits

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the obsolete status of this part number before procurement planning. Check for availability from secondary distributors or authorized surplus suppliers. Confirm that the TO-220-7 package dimensions match your PCB footprint requirements. Ensure the fixed 5V output aligns with your system design specifications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 5V rail is required alongside integrated system management features. The TO-220-7 package suits applications where through-hole mounting and heat dissipation are prioritized. Consider the 100mA current limit for load requirements. Evaluate the need for reset and watchdog functions to simplify external circuitry.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the CS8151 series of low-dropout regulators designed for embedded applications. It combines voltage regulation with essential system control features like reset generation and watchdog timers. The series targets designs requiring reliable power sequencing and fault detection in industrial or consumer electronics environments.
