CS83-A-32.768K-TR

Crystals Overview

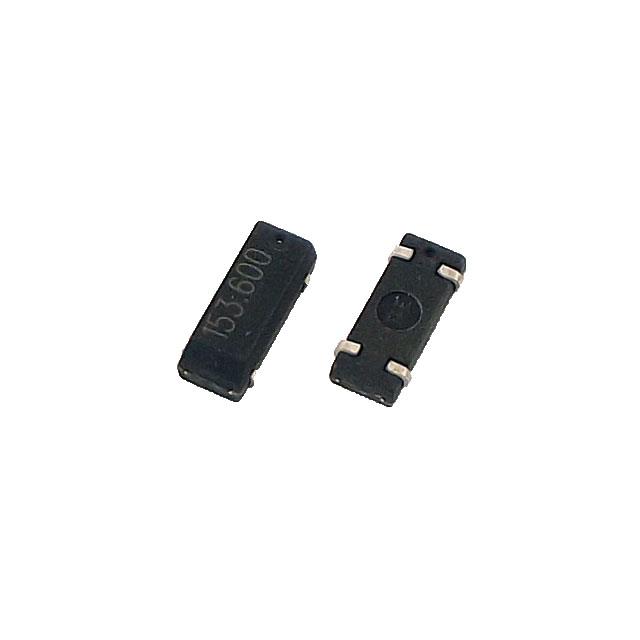

The CS83-A-32.768K-TR is an active surface-mount tuning fork crystal manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 32.768 kHz with a tolerance of ±20 ppm. The component features a load capacitance of 12.5 pF and a maximum series resistance of 50 kOhms. It utilizes a plastic molded package measuring 8.0 x 3.7 x 2.5 mm, with a seated height of 2.50 mm. The device employs a 4-SOJ footprint with a 5.50 mm pitch, designed for standard surface mount assembly processes.

Crystals Feature Summary

• Plastic molded surface mount construction
• Fundamental operating mode
• Tuning fork resonator type

Crystals Applications

• Real-time clock circuits
• Microcontroller system timing
• Low-power embedded devices

Crystals Procurement Notes

Verify the specific suffix 'A' and '-TR' against the manufacturer's current datasheet to confirm package dimensions and tape & reel specifications. Ensure the load capacitance requirement matches the target circuit design before procurement. Confirm that the ±20 ppm tolerance meets the application's timing accuracy requirements.

Crystals Selection Notes

Select this component when a low-cost, surface-mount tuning fork crystal is required for 32.768 kHz applications. The 50 kOhms ESR suits high-impedance oscillator circuits. Compare physical dimensions against PCB space constraints. Verify compatibility with reflow soldering profiles for plastic packages.

Crystals Part Context

This part belongs to the CS83 family of plastic molded SMD tuning fork crystals from Transko Electronics. It serves as a timekeeping reference in portable electronics. Similar parts include the CS2012-A-32.768K-TR, which offers a smaller 2.0x1.2mm footprint but shares the same frequency and electrical characteristics.

Crystals Replacement Considerations

Publicly documented drop-in replacements are not explicitly listed for this specific part number in the provided source material. Cross-reference with other CS83 variants or similar 8x3.5mm tuning fork crystals if supply issues arise.
