CSAB0530-R68M

Fixed Inductors Overview

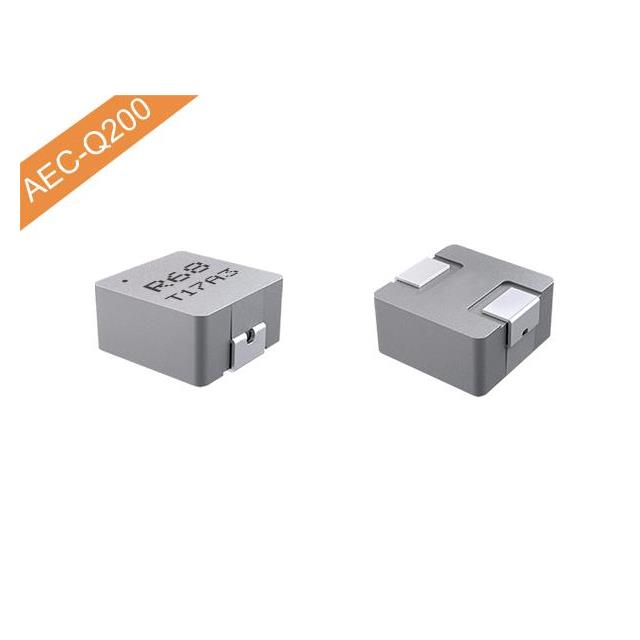

The CSAB0530-R68M is a fixed surface-mount power inductor from the CODACA CSAB series. It features a shielded, molded construction with a carbonyl powder core. The component has an inductance of 680 nH and a tolerance of ±20%. It supports a maximum DC current of 9.7 A and a saturation current of 14.5 A. The DC resistance is 12 mΩ maximum. Operating temperature range is -40°C to +125°C. Package dimensions are 5.45mm x 5.25mm x 3.10mm.

Fixed Inductors Feature Summary

• Shielded molded design minimizes electromagnetic interference
• High current capability up to 9.7A for power applications
• Low DC resistance of 12mΩ for efficiency
• Wide operating temperature range from -40°C to 125°C

Fixed Inductors Applications

• DC-DC converter output filtering
• Point-of-load regulation circuits
• Power supply input/output chokes

Fixed Inductors Procurement Notes

Verify the manufacturer part number CSAB0530-R68M against official CODACA documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance, current ratings, and physical dimensions, match the specific circuit requirements. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Fixed Inductors Selection Notes

Select this component when high current handling and compact size are critical. The 680 nH value suits high-frequency switching applications. Ensure the PCB footprint matches the 2-SMD package dimensions. Consider the saturation current rating relative to peak load conditions to prevent performance degradation.

Fixed Inductors Part Context

This part belongs to the CSAB series of high-current power inductors manufactured by CODACA. The series utilizes molding technology to achieve low loss and compact structure. It is designed for modern electronics requiring efficient power management in small form factors.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-reference with other manufacturers only if exact specifications can be matched through independent datasheet verification.
