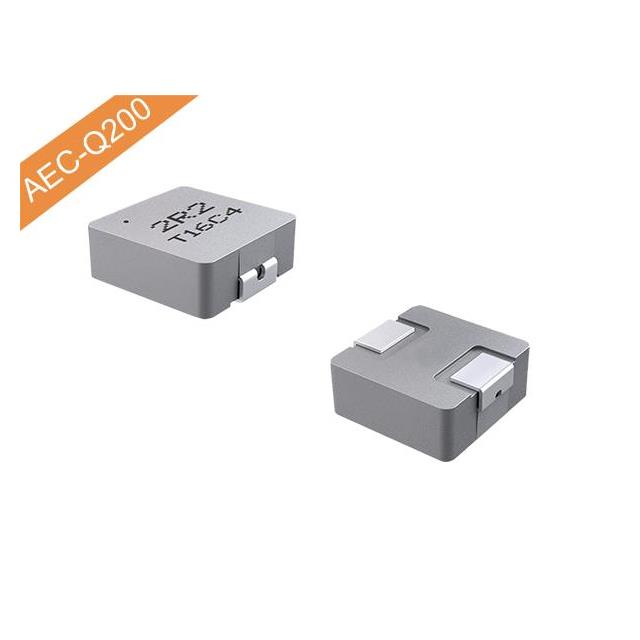

CSAB0730-R10M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is MOLDING POWER CHOKE. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CSAB0730-R10M
- Description：MOLDING POWER CHOKE
- Series：CSAB0730
- Mfr：CODACA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：-
- Inductance：-
- Tolerance：-
- Current Rating (Amps)：-
- Current - Saturation (Isat)：-
- Shielding：-
- DC Resistance (DCR)：-
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for CSAB0730-R10M
Fixed Inductors Overview
The CSAB0730-R10M is a fixed surface-mount inductor manufactured by CODACA. It features a shielded molded construction with a carbonyl iron powder core, designed for high-current applications. The component provides an inductance of 0.1 µH with a tolerance of ±20%. It supports a rated current of 30 A and achieves saturation at 45 A. The maximum DC resistance is 1.7 mΩ. Operating temperature ranges from -40°C to +125°C.
Fixed Inductors Feature Summary
- Shielded molded design minimizes electromagnetic interference.
- High saturation current capability suitable for power circuits.
- Low DC resistance reduces conduction losses.
Fixed Inductors Applications
- Automotive electronics systems
- Power supply modules
- Industrial control equipment
Fixed Inductors Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with automated pick-and-place assembly processes and reflow soldering profiles specified in the datasheet. Confirm RoHS compliance status prior to integration into final products.
Fixed Inductors Selection Notes
Select this component when low inductance and high current handling are required. Compare saturation current ratings against peak load requirements. Evaluate thermal performance within the operating temperature range. Consider footprint dimensions for PCB layout constraints relative to similar series components.
Fixed Inductors Part Context
This component belongs to the CSAB0730 series of high saturation molding power chokes produced by CODACA. The series utilizes proprietary core materials to achieve high current density. These inductors are engineered for reliability in demanding environments, adhering to automotive qualification standards.
Fixed Inductors Replacement Considerations
- CSAC0730-1R5M
Fixed Inductors FAQ
What is the saturation current rating?
The saturation current (Isat) is 45 A.
What is the maximum DC resistance?
The maximum DC resistance (DCR) is 1.7 mΩ.
Explore related parts through Inductors, Coils, Chokes, all product categories, ChipApex homepage.
