CSAB0740-5R6M

Fixed Inductors Overview

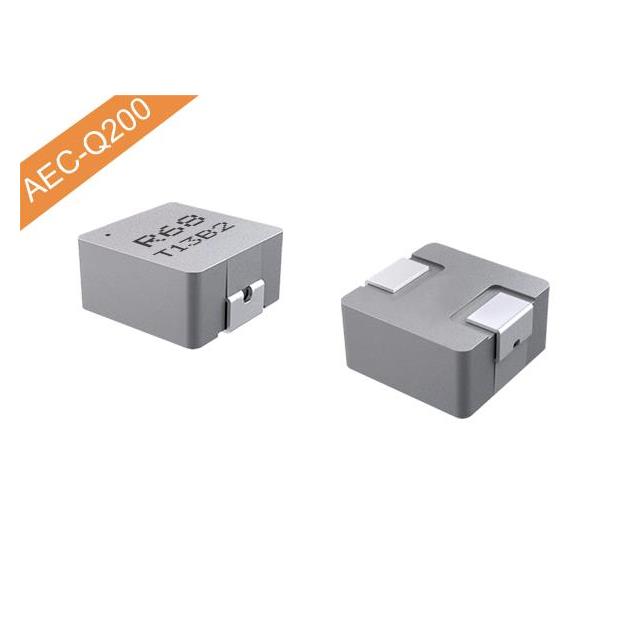

The CSAB0740-5R6M is a fixed surface-mount power inductor from the CODACA CSAB series. It features a molded magnetic shielded structure with an alloy powder core, providing excellent electromagnetic interference resistance and low buzz noise. The component has an inductance of 5.6 µH ±20%, a maximum RMS current of 5.7 A, a saturation current of 6.5 A, and a DC resistance of 38 mΩ. It operates within a temperature range of -40°C to +125°C and complies with RoHS and Reach standards.

Fixed Inductors Feature Summary

• Magnetic shielded structure for superior EMI resistance
• Alloy powder core construction for low impedance and high efficiency
• Ultra-low buzz noise due to composite structure design
• Lightweight SMT package suitable for high-density applications

Fixed Inductors Applications

• DC/DC converters for entertainment and navigation systems
• Noise suppression for motors including windshield wipers and power seats
• PDA, notebook, desktop, and server power circuits
• Power mirrors and heating ventilation blower control

Fixed Inductors Procurement Notes

Verify the specific suffix '5R6M' against official datasheets to confirm the 5.6 µH inductance value and associated electrical parameters. Ensure compatibility with standard SMT reflow processes and check moisture sensitivity level requirements during storage and handling. Confirm compliance with RoHS and Reach regulations as stated in the manufacturer documentation.

Fixed Inductors Selection Notes

Select this component when high current handling and compact size are required for power filtering or energy storage. The 5.7 A RMS rating and 6.5 A saturation current support demanding power supply designs. The shielded design minimizes magnetic field interference with nearby components, making it suitable for dense PCB layouts where EMI performance is critical.

Fixed Inductors Part Context

This part belongs to the CSAB0740 series of molding power chokes produced by Shenzhen Codaca Electronic Co., Ltd. The series utilizes die-casting technology with low-loss alloy powder to achieve low parasitic capacitance and high efficiency. The 0740 designation indicates a specific physical footprint optimized for space-constrained electronic devices.

Fixed Inductors Replacement Considerations

Consult official substitution lists for direct equivalents. Cross-reference inductance, current ratings, and physical dimensions before replacing. Verify that alternative components meet the same thermal and EMI performance standards required for the original application.
