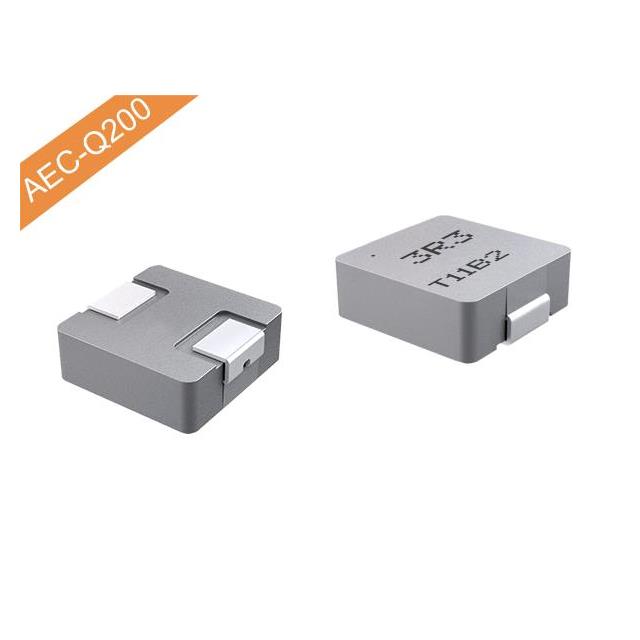

CSAB1250A-R47M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is SMD MOLDING POWER CHOKE. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CSAB1250A-R47M
- Description：SMD MOLDING POWER CHOKE
- Series：CSAB1250A
- Mfr：CODACA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Molded
- Material - Core：Alloy Powder
- Inductance：470 nH
- Tolerance：±20%
- Current Rating (Amps)：35 A
- Current - Saturation (Isat)：50A
- Shielding：Shielded
- DC Resistance (DCR)：1.2mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.543" L x 0.496" W (13.80mm x 12.60mm)
- Height - Seated (Max)：0.197" (5.00mm)
- Features：-
Fixed Inductors datasheet and documents for CSAB1250A-R47M
Fixed Inductors Overview
The CSAB1250A-R47M is a fixed shielded molded power inductor manufactured by Shenzhen Codaca Electronic Co., Ltd. It features an inductance of 470 nH (0.47 µH) with a tolerance of ±20%. The component has a maximum DC resistance of 1.2 mΩ and a rated current of 35 A. Designed for surface mount applications, it utilizes a 2-SMD package configuration. The device operates within a temperature range of -40°C to 125°C and supports automotive-grade requirements.
Fixed Inductors Feature Summary
- Shielded molded construction for electromagnetic interference reduction
- High current handling capability suitable for power supply circuits
- Automotive-grade qualification for robust environmental performance
Fixed Inductors Applications
- Automotive power distribution systems
- DC-DC converter input/output filtering
- Industrial power chokes
Fixed Inductors Procurement Notes
Verify the specific datasheet version from Shenzhen Codaca Electronic Co., Ltd. before procurement. Confirm that the 35 A rated current and 1.2 mΩ DCR specifications match your circuit design requirements. Ensure the 2-SMD footprint aligns with your PCB layout constraints. Validate automotive grade compliance if required for your application.
Fixed Inductors Selection Notes
Select this component when high current capacity and low inductance are required for power filtering. The shielded design minimizes magnetic field interference with nearby components. Consider the thermal management capabilities given the high current rating. Verify compatibility with automated surface mount assembly processes due to the SMD package type.
Fixed Inductors Part Context
This part belongs to the CSAB1250A series of molding power chokes from CODACA. The series includes various inductance values such as R15M, R22M, and R33M. These components are designed for industrial and automotive applications requiring reliable power filtering. The series shares common physical dimensions and mounting characteristics across different inductance options.
Fixed Inductors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching inductance, current rating, and package dimensions. Consult manufacturer catalogs for equivalent shielded molded inductors with similar electrical specifications.
