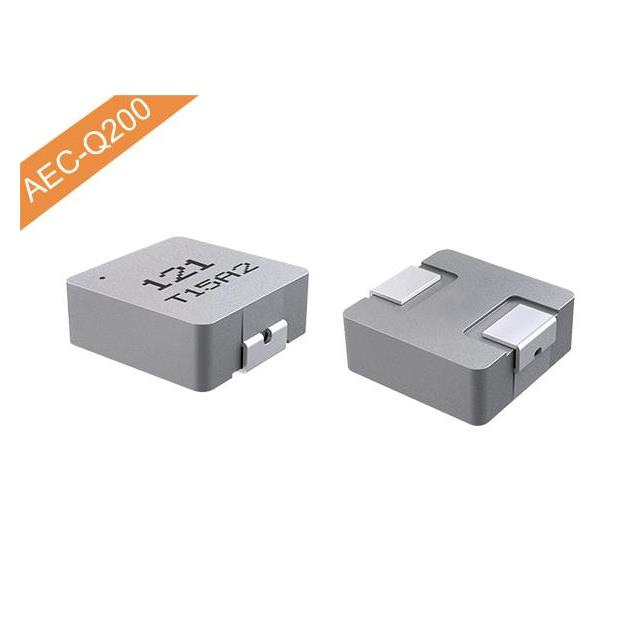

CSAB1260A-R68M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is FIX IND 0.68UH 40A 1.20MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CSAB1260A-R68M
- Description：FIX IND 0.68UH 40A 1.20MOHM SMD
- Series：CSAB1260A
- Mfr：CODACA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Molded
- Material - Core：Alloy Powder
- Inductance：680 nH
- Tolerance：±20%
- Current Rating (Amps)：40 A
- Current - Saturation (Isat)：40A
- Shielding：Shielded
- DC Resistance (DCR)：1.2mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.543" L x 0.496" W (13.80mm x 12.60mm)
- Height - Seated (Max)：0.236" (6.00mm)
- Features：-
Fixed Inductors datasheet and documents for CSAB1260A-R68M
Fixed Inductors Overview
The CSAB1260A-R68M is a shielded, molded power inductor from the CODACA CSAB1260A series. It features an alloy powder core and offers an inductance of 0.68 µH with ±20% tolerance. The component supports a maximum DC current of 9.2 A and a saturation current of 40 A. Its low DC resistance is 1.2 mΩ max. Designed for surface mount installation, it measures 13.8 mm x 12.6 mm x 5.8 mm. Operating temperature ranges from -40°C to 125°C.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference and reduces acoustic noise.
- Molded alloy powder core provides high efficiency and wide application frequency range.
- Compact lightweight design suitable for high-density PCB layouts.
Fixed Inductors Applications
- Point-of-load (POL) voltage regulation modules
- High-frequency DC-DC converter circuits
- Power supply filtering applications
Fixed Inductors Procurement Notes
Verify the specific suffix 'R68M' corresponds to the 0.68 µH value and 40 A saturation current. Confirm package dimensions match 13.8x12.6x5.8mm requirements. Ensure RoHS compliance meets project standards. Check lead time availability as manufacturing schedules may vary.
Fixed Inductors Selection Notes
Select this component when high saturation current and low DCR are critical for power efficiency. The shielded design is ideal for noise-sensitive environments. Compare Isat and Idc ratings against peak load requirements to ensure reliable operation within thermal limits.
Fixed Inductors Part Context
This part belongs to the CSAB1260A series of molding power chokes by Shenzhen Codaca Electronic Co., Ltd. The series emphasizes ultra-low buzz noise and lightweight design. Components are engineered for industrial-grade performance and reliability in modern electronic systems.
Fixed Inductors Replacement Considerations
Cross-reference compatible parts from other manufacturers offering similar 0.68 µH values and 40 A saturation currents. Verify footprint compatibility with the 2-SMD 1260 package. Ensure equivalent shielding and thermal characteristics for direct substitution.
