CSBP-A940+

Overview

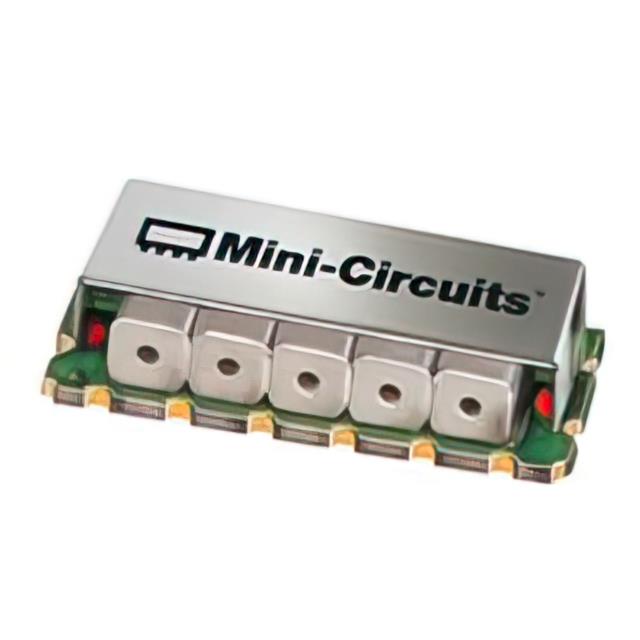

The CSBP-A940+ is a ceramic resonator bandpass filter manufactured by Mini-Circuits, designed for RF signal conditioning applications. It operates within a frequency range of 880 MHz to 1000 MHz with a center frequency of 940 MHz and a bandwidth of 120 MHz. The component features a 50-ohm impedance and utilizes an SMD package with 16 leads and no solder pins. Key electrical specifications include an insertion loss of 2 dB and a typical temperature coefficient of ±0.25 dB. It supports high power handling and offers excellent close-in rejection, making it suitable for demanding wireless communication environments.

Feature Summary

• Utilizes ceramic resonator technology for stable performance
• Provides excellent close-in rejection characteristics
• Supports high power handling capabilities
• Features low insertion loss for efficient signal transmission

Applications

• GSM network infrastructure
• Cellular frequency bands
• RF front-end modules
• Wireless communication systems

Procurement Notes

Verify the specific datasheet version for precise mechanical dimensions and thermal characteristics before integration. Confirm that the 16-SMD no-lead package footprint matches your PCB layout requirements. Ensure operating conditions remain within the specified temperature range to maintain the stated ±0.25 dB temperature stability. Cross-reference the manufacturer's part number CSBP-A940+ with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when a narrow bandpass response centered at 940 MHz is required for GSM or cellular applications. The ceramic resonator construction offers superior stability compared to LC filters in high-power scenarios. Consider the 16-lead SMD package for automated surface-mount assembly processes. Evaluate the 120 MHz bandwidth against system channel spacing requirements to ensure adequate isolation from adjacent signals.

Part Context

This component belongs to Mini-Circuits' line of signal conditioning filters, specifically those utilizing ceramic resonator technology. These devices are engineered for robust performance in radio frequency environments where size constraints and power handling are critical. The GP2SA+ series mentioned in some contexts represents a different product category (power splitters) and is not directly related to the filtering function of the CSBP-A940+.

FAQ

What is the center frequency of the CSBP-A940+?

The center frequency is 940 MHz.

Does the CSBP-A940+ support high power handling?

Yes, it is designed with high power handling capabilities suitable for active RF applications.
