CSBX1275-330M

Fixed Inductors Overview

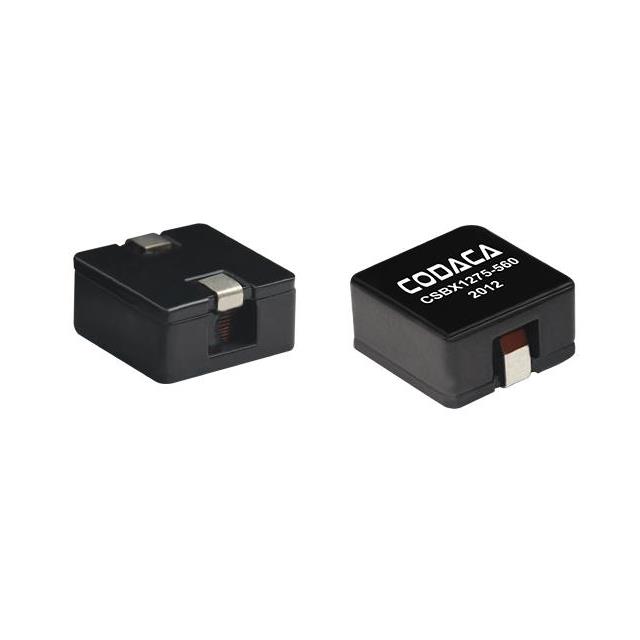

The CODACA CSBX1275-330M is a shielded, wirewound fixed inductor from the CSBX1275 series. It features a nominal inductance of 33 µH with a ±20% tolerance. The component has a maximum DC resistance (DCR) of 32.5 mΩ and an AEC-Q200 rating. It supports a continuous current of 11 A and a saturation current (Isat) of 11.4 A. The unit operates within a temperature range of -55°C to 150°C and utilizes a 2-SMD flat package.

Fixed Inductors Feature Summary

• Shielded wirewound construction for high Q value
• AEC-Q200 automotive grade qualification
• Flat wire design for high current handling

Fixed Inductors Applications

• Motor control systems
• DC-DC converters
• Energy storage systems

Fixed Inductors Procurement Notes

Verify the specific part number against official CODACA documentation to confirm availability status. Check for alternative packages or suffixes if standard stock is limited. Ensure compatibility with automated surface mount assembly processes given the SMD form factor. Confirm thermal performance requirements align with the specified operating temperature range during system integration.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with high saturation current is required for power conversion applications. The 33 µH value suits filtering needs in moderate frequency ranges. Consider the 32.5 mΩ DCR for efficiency calculations in low-voltage, high-current circuits. The AEC-Q200 rating makes it suitable for automotive environments requiring robust reliability standards.

Fixed Inductors Part Context

This inductor belongs to the CSBX1275 series, designed for high-current power applications. It shares the same physical footprint and shielding technology as other variants in the line, such as the CSBL1275 series, but offers different inductance values. The series is characterized by its flat wire winding technique and metal composite core material.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult manufacturer catalogs for direct equivalents with matching electrical parameters and mechanical dimensions.
