CSCF2915H-6R8MC

Fixed Inductors Overview

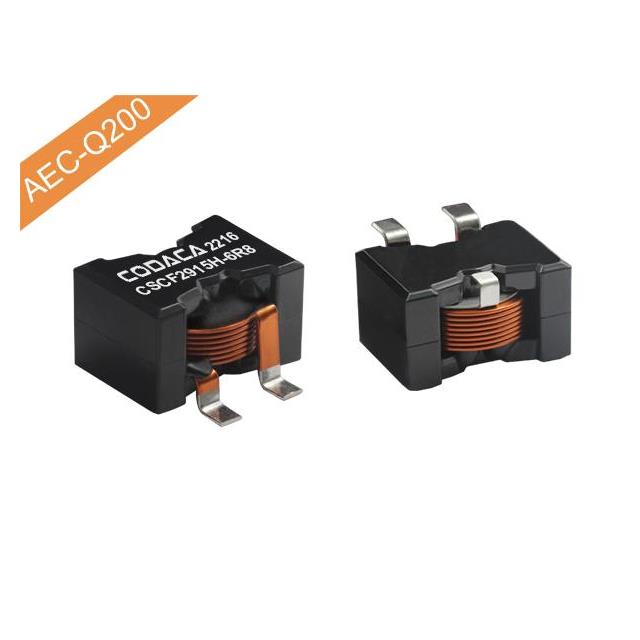

The CSCF2915H-6R8MC is a high-current power inductor from CODACA's CSCF series, designed for stable power delivery and noise filtering. It features a 6.8 µH nominal inductance with a ±20% tolerance. The component supports a saturation current of 32 A and a DC resistance (DCR) of 1.65 mΩ maximum. Constructed with Mn-Zn ferrite core material and shielded wirewound technology, it utilizes a vertical package with three PC pins. This design ensures low loss characteristics suitable for demanding electronic applications.

Fixed Inductors Feature Summary

• Utilizes Mn-Zn ferrite core material for low loss performance
• Features shielded wirewound construction to minimize electromagnetic interference
• Supports high current capability up to 32 A saturation current
• Designed with vertical mounting configuration using three PC pins

Fixed Inductors Applications

• DC/AC inverters
• High-current power supply circuits
• Noise filtering applications requiring stable power delivery

Fixed Inductors Procurement Notes

Verify the specific ordering suffix MC against the manufacturer's official documentation to confirm tolerance and packaging details. Ensure the selected variant matches the required 32 A current rating and 1.65 mΩ DCR specifications for your circuit design. Cross-reference the RoHS3 compliance status if environmental regulations apply to your project requirements.

Fixed Inductors Selection Notes

Select this component when a high saturation current of 32 A is required alongside a 6.8 µH inductance value. The low DC resistance of 1.65 mΩ makes it suitable for efficiency-critical power stages. Consider the vertical three-pin package for board layout constraints and ensure the operating temperature range aligns with the ferrite core's thermal characteristics.

Fixed Inductors Part Context

This part belongs to the CODACA CSCF series of high-current power inductors. The series is characterized by flat wire winding techniques and Mn-Zn ferrite cores, offering saturation currents up to 100 A across different models. The CSCF2915H-6R8MC represents a specific configuration within this family, optimized for applications needing robust current handling and compact vertical integration.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative components based on matching inductance, current ratings, and physical dimensions before substitution.
