CSCM1480L-6R1M

Fixed Inductors Overview

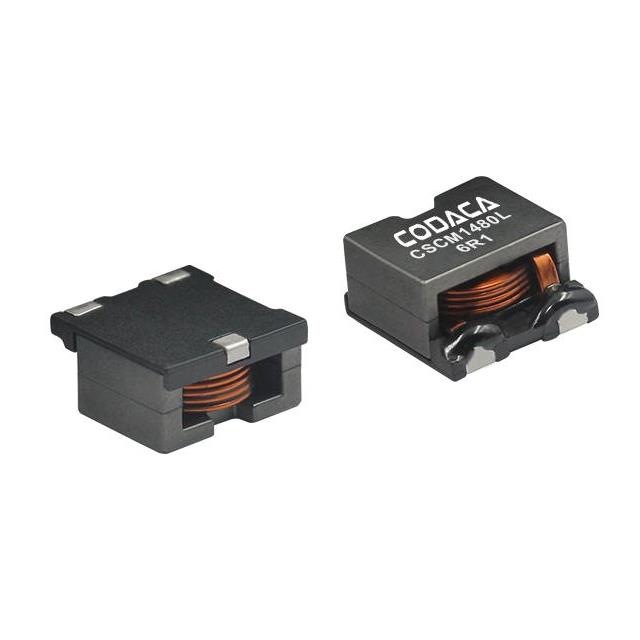

The CSCM1480L-6R1M is a shielded, wire-wound fixed inductor from the CODACA CSCM1480L series. It features a low-loss ferrite core and operates within a temperature range of -40°C to 125°C. The component has an inductance of 6.1 µH with a tolerance of ±20%, measured at a test frequency of 100 kHz. It supports a maximum rated current of 13.5 A and a saturation current (Isat) of 20 A. The DC resistance (DCR) is 6.03 mΩ max. The package is a 3-SMD surface mount type with dimensions of 14.80mm x 14.50mm x 8.00mm.

Fixed Inductors Feature Summary

• Shielded magnetic structure for excellent electromagnetic interference resistance
• Assemblage design providing sturdy mechanical structure
• Low-loss ferrite core material construction

Fixed Inductors Applications

• High-current power supply circuits
• Point-of-load conversion stages
• Automotive electronics systems

Fixed Inductors Procurement Notes

Verify the specific part number CSCM1480L-6R1M against official CODACA documentation to confirm electrical parameters. Ensure compatibility with surface mount assembly processes. Check RoHS3 compliance status as indicated in manufacturer records. Confirm lead times and packaging options directly with authorized distributors.

Fixed Inductors Selection Notes

Select this component for applications requiring high current handling and compact form factors. The 6.1 µH value suits specific filtering or energy storage needs. Consider the 13.5 A rated current and 20 A saturation limit for circuit design margins. The 3-SMD package facilitates automated surface mount technology placement.

Fixed Inductors Part Context

This inductor belongs to the CSCM1480L family of SMD high-current power inductors manufactured by Shenzhen Codaca Electronic Co., Ltd. The series focuses on delivering higher current capabilities and lower losses compared to standard components. The product line addresses demands from mid-to-high-end customers regarding performance and quality stability.

Fixed Inductors Replacement Considerations

Consult official CODACA documentation for confirmed substitute part numbers. Verify that any replacement matches the 6.1 µH inductance, 3-SMD footprint, and current ratings. Cross-reference datasheets to ensure equivalent thermal and electromagnetic characteristics.
