CSD12106WLG

Overview

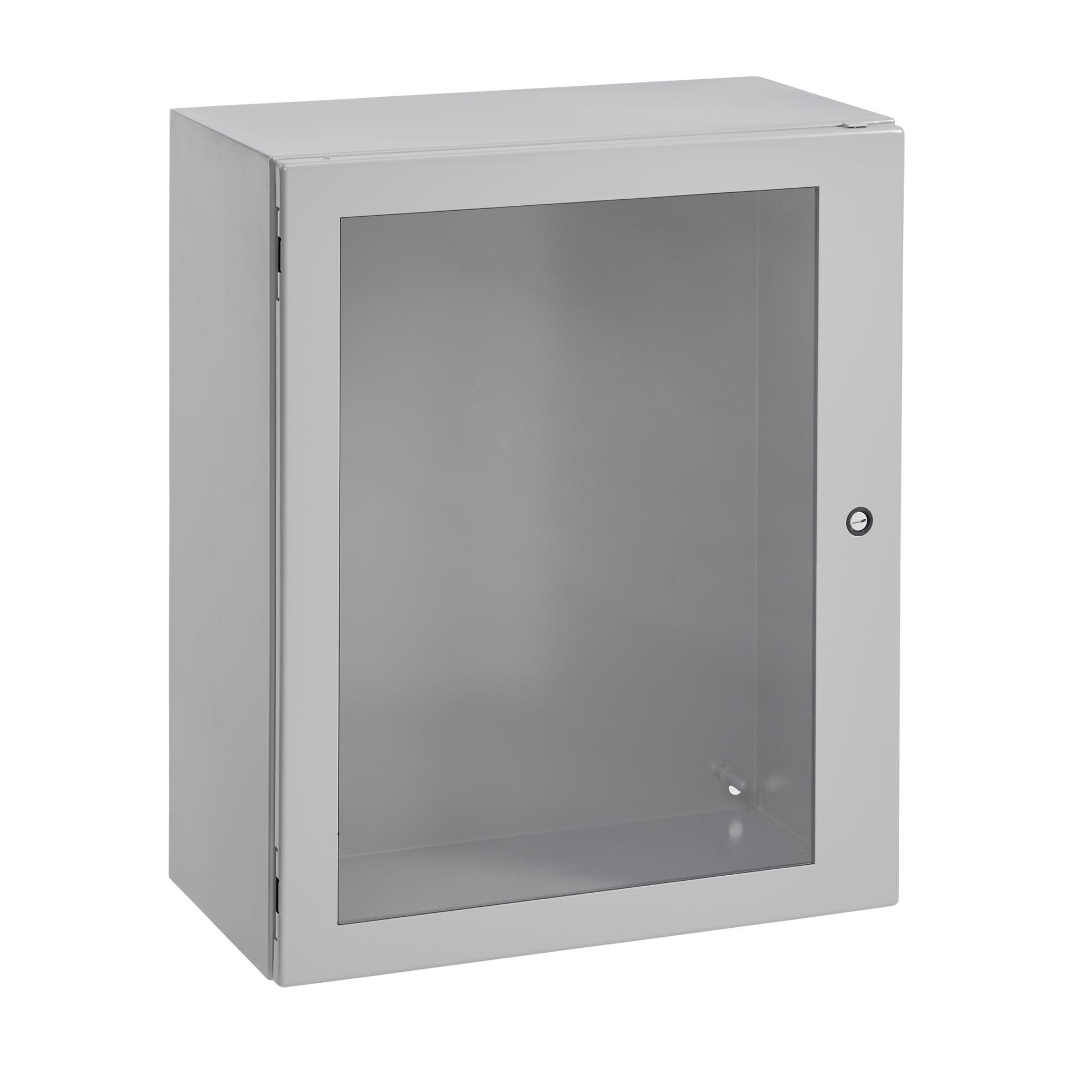

The CSD12106WLG is a wall-mount steel enclosure manufactured by nVent Hoffman. It features a windowed door design with dimensions of 12.00 inches in length, 10.00 inches in width, and 6.00 inches in depth (304.80 mm x 254.00 mm x 152.40 mm). The unit is constructed from light gray steel and carries an IP66 and NEMA Type 4, 12, and 13 rating for environmental protection. It utilizes flush quarter-turn latches and includes a removable door with hidden hinges.

Feature Summary

• Windowed door configuration for internal component visibility
• Flush quarter-turn latch mechanism for secure closure
• Removable door design with hidden hinges for simplified access
• Continuously welded and ground smooth seams

Applications

• Machine control applications
• Industrial equipment housing
• Electrical component protection

Procurement Notes

Verify the specific manufacturer designation, as nVent acquired Hoffman Enclosures. Confirm that the part number corresponds to the Concept series window-door enclosure. Ensure the required ingress protection ratings align with the installation environment specifications before finalizing procurement orders.

Selection Notes

Select this model when visual monitoring of internal components is required without compromising environmental sealing. The 12x10x6 inch footprint provides adequate space for standard industrial controls while maintaining a compact wall-mount profile suitable for limited installation areas.

Part Context

This component belongs to the Hoffman Concept series of enclosures. The series is characterized by streamlined styling and durable finishes designed for industrial environments. The CSD prefix typically denotes wall-mount steel enclosures within the product line.

Replacement Considerations

Direct substitutes may include other models within the Hoffman Concept series with similar dimensions or ingress protection ratings. Verify dimensional compatibility and mounting hole patterns when considering alternative manufacturers' products.
