CSD242412W

Overview

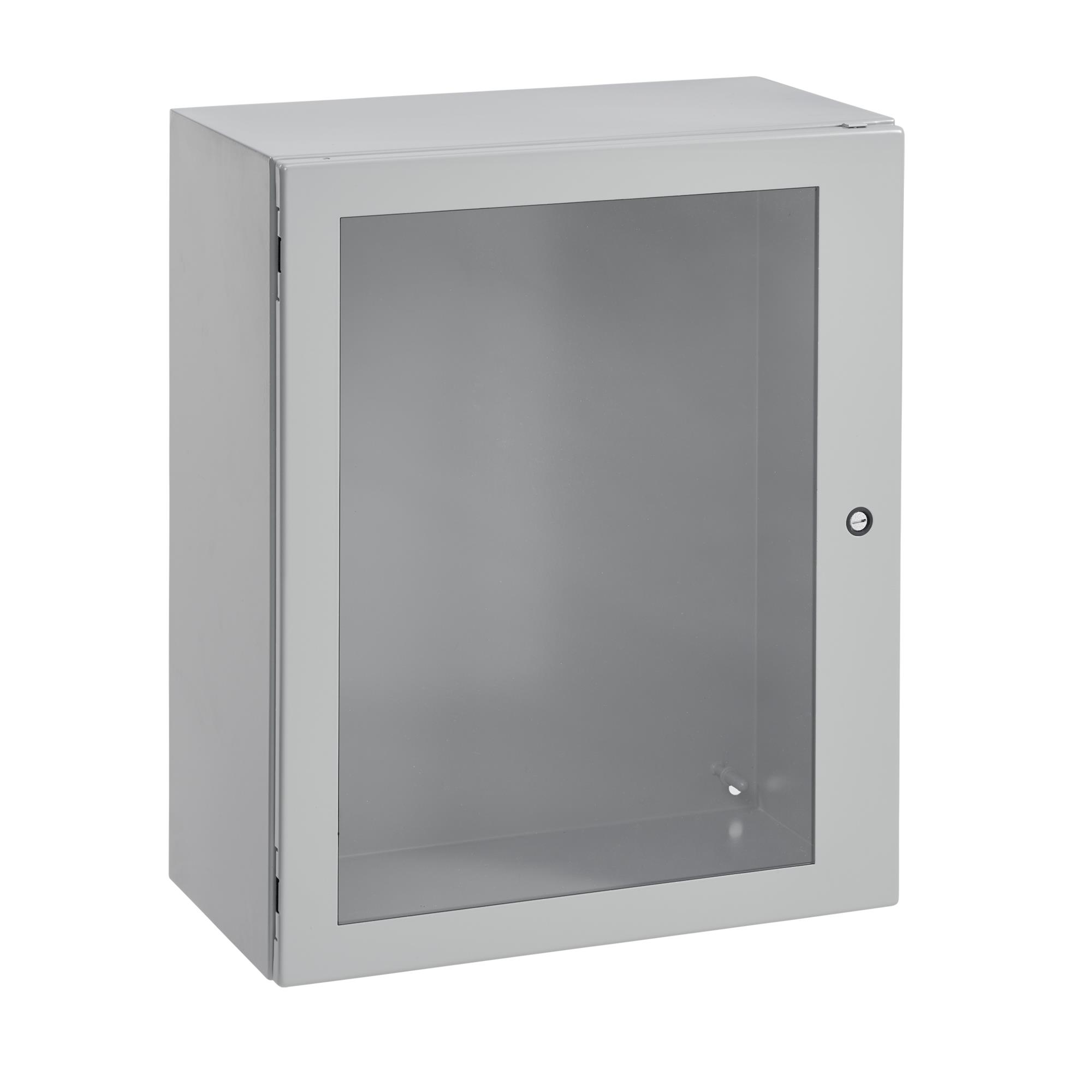

The Hoffman Enclosures Inc. CSD242412W is a Concept series wall-mount enclosure constructed from steel with a polyester powder-coated finish in ANSI 61 gray. It features a single door design with flush quarter-turn latches and a windowed door configuration. The unit measures 24 inches in length, 24 inches in width, and 12 inches in depth. It provides NEMA 4/12 protection ratings, ensuring suitability for machine control applications requiring durable styling and environmental sealing.

Feature Summary

• Features streamlined styling with flush quarter-turn latches for secure closure
• Includes a windowed door configuration for visibility
• Constructed from steel with a durable polyester powder-coated finish
• Designed specifically for machine control applications

Applications

• Machine control panels
• Industrial equipment housing
• Electrical component protection

Procurement Notes

Verify the specific model suffix to confirm the inclusion of the window feature, as standard variants may differ. Confirm that the NEMA 4/12 rating aligns with the intended environmental exposure requirements. Ensure the steel construction and ANSI 61 gray finish meet aesthetic and durability standards for the installation site. Cross-reference dimensions to verify fit within the designated mounting space.

Selection Notes

Select this model when a windowed door is required for visual inspection of internal components without opening the enclosure. The NEMA 4/12 rating indicates protection against windblown dust, rain, sleet, snow, and hose-directed water, making it suitable for indoor or outdoor use where corrosion resistance is needed. The 24x24x12 inch size offers substantial volume for larger assemblies.

Part Context

This unit belongs to the Hoffman Concept series, which emphasizes streamlined aesthetics and functional hardware like quarter-turn latches. The series is engineered for robust performance in industrial settings. The CSD prefix typically denotes a steel wall-mount enclosure within this product line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
