CSEG1060-2R7M

Fixed Inductors Overview

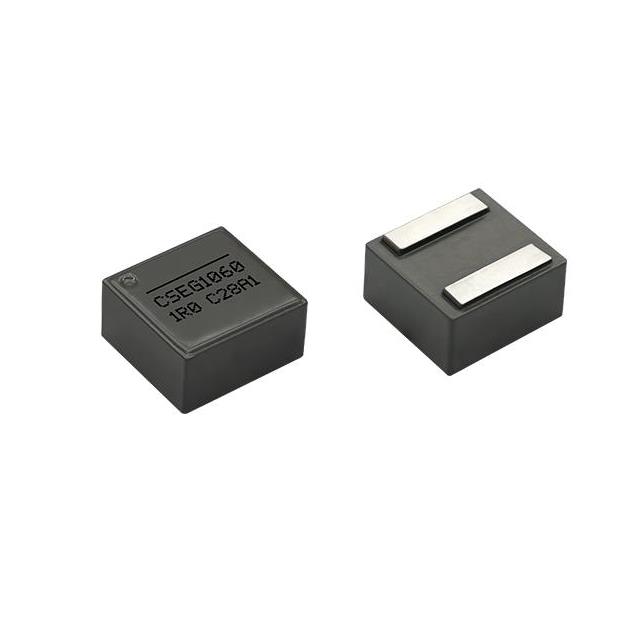

The CSEG1060-2R7M is a shielded wirewound inductor from the CODACA CSEG series, designed for industrial power applications. It features a 2.7 µH nominal inductance with a maximum DC resistance (DCR) of 4.25 mΩ. The component supports a saturation current of 4.25 A and a temperature rise current of 3.20 A. Housed in a compact 2-SMD package, it utilizes low-loss alloy powder cores and flat-wire winding to minimize AC losses and enhance efficiency within high-frequency switching environments.

Fixed Inductors Feature Summary

• Utilizes low-loss alloy powder cores and flat-wire winding design to achieve ultra-low DCR and minimal AC losses.
• Features an integrated molded magnetic shielding structure that provides strong anti-interference capabilities and reduces converter noise.
• Employs a bottom electrode design where the coil and electrode are integrated, eliminating open-circuit risks and improving reliability.

Fixed Inductors Applications

• Industrial control systems
• Industrial power DC-DC converters
• Motor control applications

Fixed Inductors Procurement Notes

Verify the specific suffix 'M' corresponds to the required tolerance level for your circuit design. Confirm that the 2.7 µH inductance value aligns with the target frequency range of 100 kHz to 5 MHz. Ensure the PCB footprint matches the SMD package dimensions provided in the official datasheet to guarantee proper mounting and thermal performance.

Fixed Inductors Selection Notes

Select this component when designing for high-density installations requiring robust current handling with minimal voltage drop. The soft saturation characteristic makes it suitable for applications where current spikes may occur without abrupt inductance loss. Consider the 4.25 mΩ DCR for efficiency calculations in low-voltage, high-current DC-DC conversion stages.

Fixed Inductors Part Context

This part belongs to the CSEG series of industrial-grade molded power inductors developed by Shenzhen Codaca Electronic Co., Ltd. The series offers eight distinct size options, ranging from 0420 to 1010 packages, to accommodate various spatial constraints. The CSEG1060 variant specifically targets higher current requirements compared to smaller form factors in the same family.

Fixed Inductors Replacement Considerations

Direct substitutes within the CSEG series include CSEG1060-2R2M and CSEG1060-3R3M if different inductance values are acceptable. Cross-series replacements such as CSBL or CSCM models require careful verification of pin compatibility and electrical parameters due to differing construction technologies.
