CST19/10/29-3N2 is listed in the Chip Ferrite Bead range at ChipApex. The manufacturer field lists Ferroxcube. Its product description is CABLE BEAD EMI SUPPRESSION CORE. Review the specifications below when checking this part for your BOM.
Chip Ferrite Bead specifications for CST19/10/29-3N2
- Description：CABLE BEAD EMI SUPPRESSION CORE
- Series：-
- Mfr：Ferroxcube
- Package：Bulk
- Filter Type：-
- Number of Lines：-
- Impedance @ Frequency：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-
- Package / Case：-
- Mounting Type：-
- Height (Max)：-
- Size / Dimension：-
- Features：-
Chip Ferrite Bead datasheet and documents for CST19/10/29-3N2
Chip Ferrite Bead Overview

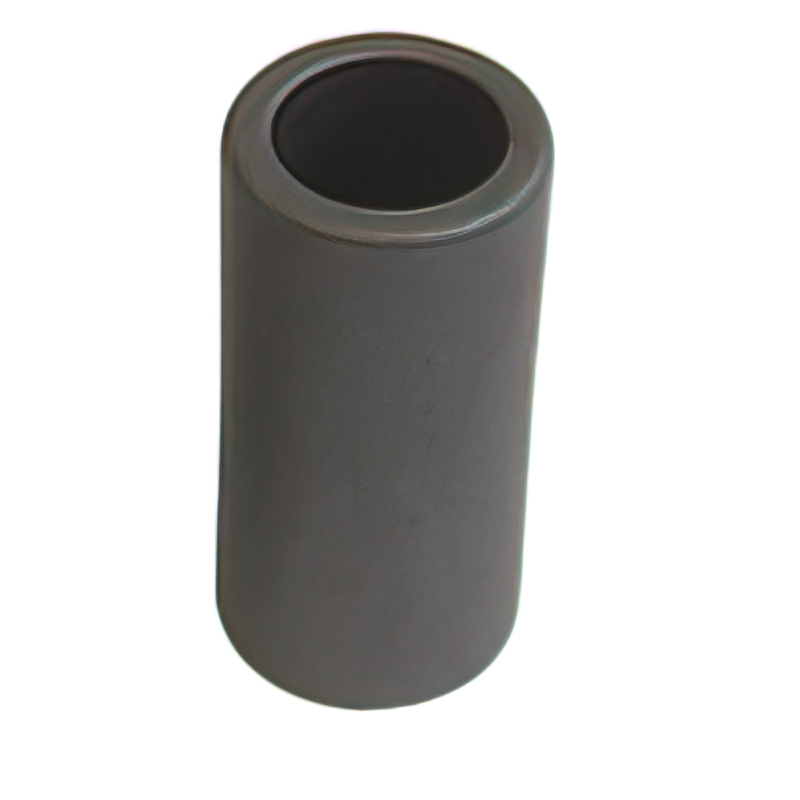

The CST19/10/29-3N2 is a cylindrical ferrite core designed for EMI suppression applications. It belongs to the CST series and utilizes 3N2 material composition. The component features a single hole with an internal diameter of 10 mm, accommodating cables up to that thickness. Its external dimensions are specified as 19 mm in diameter and 29 mm in length. This bead provides impedance characteristics suitable for noise reduction on cable assemblies.
Chip Ferrite Bead Feature Summary
- Cylindrical geometry optimized for sliding over existing cable assemblies
- Utilizes 3N2 ferrite material composition for specific frequency attenuation
- Single-hole design allows for easy installation on wires and cables
Chip Ferrite Bead Applications
- EMI suppression on data cables
- Noise filtering on power supply lines
- Signal integrity enhancement in electronic equipment
Chip Ferrite Bead Procurement Notes
Verify the exact material grade (3N2) against application requirements. Confirm physical dimensions match cable outer diameters. Ensure compatibility with environmental conditions such as temperature ranges specified in official datasheets. Check for any specific handling instructions regarding brittle ceramic materials.
Chip Ferrite Bead Selection Notes
Select based on required impedance frequency range provided by the 3N2 material. Ensure the 10 mm inner diameter fits the target cable bundle. Consider the external size constraints within the device enclosure. Validate that the cylindrical form factor meets mechanical mounting needs without additional fixtures.
Chip Ferrite Bead Part Context
This component is part of Ferroxcube's CST series of cable beads. These cores are distinct from wound inductors or planar transformers. They serve as passive components for electromagnetic interference mitigation rather than energy storage or transformation.
Chip Ferrite Bead Replacement Considerations
Substitute only with identical CST19/10/29-3N2 parts or verified equivalents offering matching 3N2 material properties and identical 19x29 mm dimensions. Verify inner diameter compatibility.
