CT-156.250MBC-T

Oscillators Overview

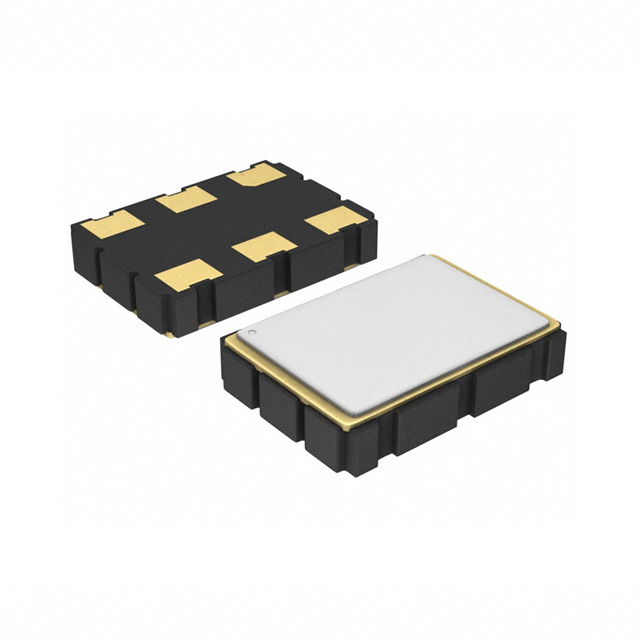

The CT-156.250MBC-T is a standard clock oscillator manufactured by TXC Corporation, operating at a frequency of 156.25 MHz. It utilizes an LVDS output signal and functions with a 3.3V supply voltage. The device features an enable/disable control function and is housed in a compact 6-SMD, No Lead surface-mount package with dimensions of 5.00mm x 3.20mm. This component belongs to the CT series and is designed for applications requiring precise timing signals.

Oscillators Feature Summary

• LVDS differential output interface for high-speed signal integrity
• Integrated enable and disable control functionality
• Compact 6-SMD no-lead surface mount packaging

Oscillators Applications

• High-speed digital data transmission systems
• Telecommunications equipment clocking
• Network infrastructure timing references

Oscillators Procurement Notes

Verify the specific manufacturing lot date code against project requirements before procurement. Confirm that the LVDS output voltage levels are compatible with the receiving logic inputs. Ensure the 3.3V supply rail stability meets the oscillator's operational specifications. Check for any recent product change notices or end-of-life notifications from the manufacturer regarding this specific part number.

Oscillators Selection Notes

Select this model when LVDS signaling is required for noise immunity in high-frequency designs. The 5.00mm x 3.20mm footprint offers a balance between size and performance. Consider the enable/disable pin utility for power management strategies. Verify thermal dissipation capabilities within the target enclosure environment.

Oscillators Part Context

This oscillator is part of the CT series from TXC Corporation, which specializes in SAW-based oscillators. The CT series typically provides stable frequency generation for demanding electronic applications. The 156.25 MHz frequency is commonly used in SONET/SDH and Ethernet standards. The LVDS output distinguishes it from CMOS or PECL variants in the same family.

Oscillators Replacement Considerations

The CT-156.250MCC-T is a comparable variant within the same series. Both share similar electrical characteristics but may differ in specific tolerance or temperature range details. Verify pin compatibility and output signal integrity before substitution.
