CT0201LSF-39NJ

Overview

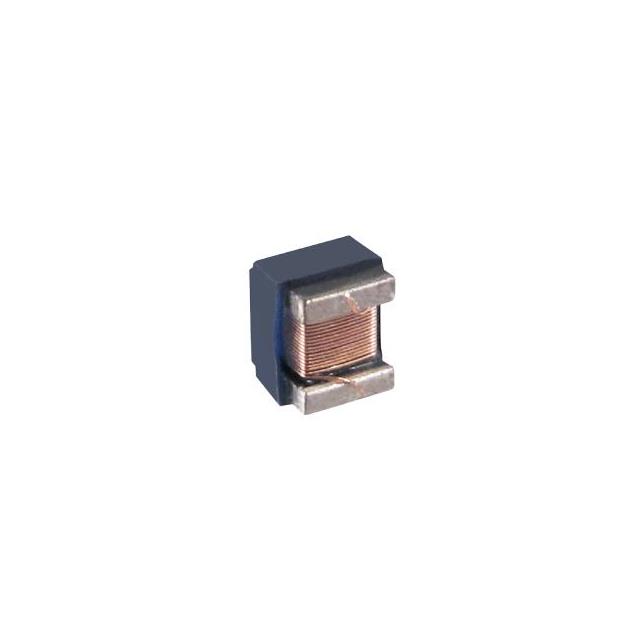

The CT0201LSF-39NJ is a fixed wire-wound inductor manufactured by Central Technologies, designed for surface-mount applications. It features a nominal inductance of 39 nH with a tolerance of ±5%. The component utilizes a ferromagnetic core and offers a DC resistance of 950 mOhm. It operates within a temperature range of -25°C to 105°C and exhibits a self-resonant frequency of 1.4 GHz.

Feature Summary

• Wire-wound construction on a ferromagnetic core for stable RF performance
• Compact 0201 surface-mount package footprint
• High self-resonant frequency capability

Applications

• RF circuit filtering
• Impedance matching networks
• General-purpose signal conditioning

Procurement Notes

Verify the specific suffix code against official Central Technologies documentation to confirm tolerance accuracy. Ensure the selected variant matches the required operating temperature range and current ratings for the target application environment.

Selection Notes

Select this component when a compact 0201 form factor is required for low-inductance RF applications. Consider the 950 mOhm DC resistance and 1.4 GHz self-resonant frequency limits during circuit design to ensure optimal signal integrity.

Part Context

This part belongs to the CT0201LSF series of wire-wound chip inductors from Central Technologies. The series provides various inductance values in a standard 0201 package, catering to high-frequency electronic designs requiring small physical dimensions.

Replacement Considerations

Cross-reference with other 0201 wire-wound inductors offering 39 nH ±5% tolerance. Verify that substitute components match the 950 mOhm DCR and 1.4 GHz SRF specifications to maintain circuit performance.
