CT0402LSF-R10K

Fixed Inductors Overview

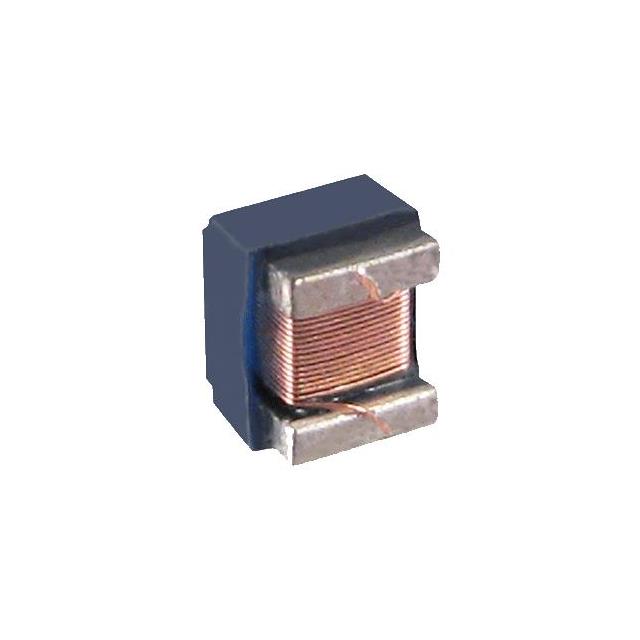

The CT0402LSF-R10K is a general purpose inductor manufactured by Central Technologies. It features an inductance of 0.1 µH with a tolerance of ±10%. The component utilizes a ceramic core and is designed for surface mount applications in the 0402 package. It has a maximum rated current of 0.3 A and a DC resistance of 0.5 Ω. The self-resonant frequency is 1800 MHz, and it operates within a temperature range of -55 °C to +125 °C.

Fixed Inductors Feature Summary

• Surface mount construction in a compact 0402 footprint
• Ceramic core design for RF applications
• RoHS compliant manufacturing

Fixed Inductors Applications

• RF circuits
• General purpose filtering
• Signal processing

Fixed Inductors Procurement Notes

Verify the specific suffix 'LSF' against the manufacturer's official datasheet to confirm lead-free status and exact termination specifications. Ensure the ordering code matches the required tolerance and inductance value precisely. Confirm RoHS compliance documentation is available from the supplier before finalizing procurement.

Fixed Inductors Selection Notes

Select this component for high-frequency applications requiring a small form factor. The 0.1 µH value suits RF filtering needs. Check that the 0.3 A current rating meets circuit requirements. Verify the 1800 MHz self-resonant frequency aligns with the target operating band. Consider thermal performance within the specified temperature range.

Fixed Inductors Part Context

This part belongs to the CT0402LSF series of ceramic core chip inductors from Central Technologies. These components are designed for surface mount technology (SMT) assembly. The series offers various inductance values optimized for radio frequency and general electronic applications.

Fixed Inductors Replacement Considerations

Consult official cross-reference data for direct substitutes. Generic equivalents may differ in Q-factor or self-resonant frequency.
