CT0603HCF-240J

Fixed Inductors Overview

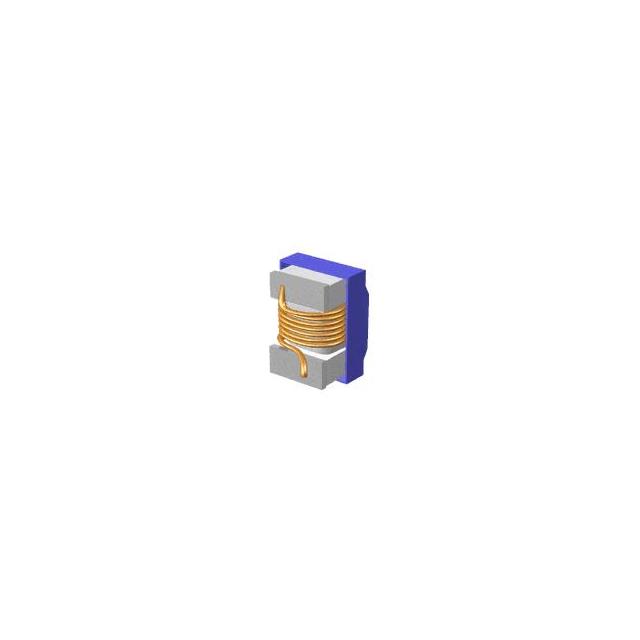

The CT0603HCF-240J is a wirewound inductor from Central Technologies with an inductance of 24 nH. It features a DC resistance (DCR) of 105 mΩ and operates within the standard 0603 surface-mount package dimensions. The component is RoHS compliant, indicated by the 'F' suffix in the part number.

Fixed Inductors Feature Summary

• Utilizes wirewound construction for stable inductance performance
• Designed for surface-mount technology integration
• Complies with RoHS environmental standards

Fixed Inductors Applications

• RF circuit filtering
• Signal processing networks
• General-purpose electronic assemblies

Fixed Inductors Procurement Notes

Verify the specific RoHS compliance status by checking the datasheet for the 'F' suffix designation. Confirm that the 24 nH inductance value aligns with the target circuit requirements. Ensure the 0603 footprint matches the PCB layout constraints before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a low-inductance value near 24 nH is required for high-frequency applications. Consider the 105 mΩ DCR impact on power loss. Evaluate the physical size compatibility against available board space. Compare performance against ceramic-core alternatives if higher Q factors are necessary.

Fixed Inductors Part Context

This model belongs to the CT0603HC series of wirewound chip inductors manufactured by Central Technologies. The series provides various inductance options within the 0603 form factor. The 'J' suffix typically denotes a tolerance specification, while 'F' indicates RoHS compliance.

Fixed Inductors Replacement Considerations

Cross-reference with other 24 nH wirewound inductors in the 0603 package. Verify equivalent DCR and current ratings. Check for compatible RoHS compliance status. Ensure mechanical dimensions match existing footprints.
