CT0603LSF-182J

Fixed Inductors Overview

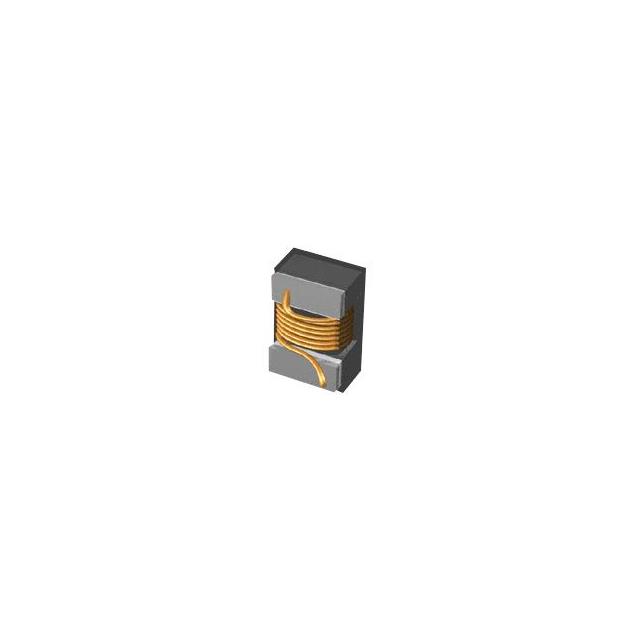

The CT0603LSF-182J is a fixed surface-mount wire-wound inductor manufactured by Central Technologies. It features a nominal inductance of 1.8 µH with a tolerance of ±5%. The component has a DC resistance (DCR) of 1.1 Ohm and a self-resonant frequency of 230 MHz. It operates within a temperature range of -40°C to 85°C.

Fixed Inductors Feature Summary

• Wire-wound construction for stable high-frequency performance
• Surface-mount design compatible with automated assembly
• RoHS compliant and lead-free manufacturing

Fixed Inductors Applications

• RF circuit impedance matching networks
• High-frequency signal filtering applications
• General-purpose SMD inductive components

Fixed Inductors Procurement Notes

Verify the specific part number against manufacturer datasheets to confirm electrical parameters such as inductance, DCR, and tolerance. Ensure compatibility with your PCB footprint and reflow soldering profiles. Check for RoHS compliance status if required by your supply chain regulations.

Fixed Inductors Selection Notes

Select this component when a 1.8 µH inductance value is required in a 0603 package size. Consider the 1.1 Ohm DC resistance and 230 MHz self-resonant frequency to ensure suitability for your target frequency range. Verify that the operating temperature range meets your environmental requirements.

Fixed Inductors Part Context

This component belongs to the CT0603LSF series of SMD wire-wound chip inductors from Central Technologies. The series offers various inductance values ranging from low nanohenries to higher microhenry levels, all housed in a compact 0603 surface-mount package suitable for space-constrained electronic designs.

Fixed Inductors Replacement Considerations

Consult official distributor databases or manufacturer cross-reference tools for verified substitute part numbers. Ensure any replacement matches the 1.8 µH inductance, ±5% tolerance, 0603 package dimensions, and similar electrical characteristics.
