CT0805CSF-101G

$0.65

Description：SMD CER CORE WIRE-WOUND INDUCTOR
Series：ct0805csf
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:760b556c2b2e Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CT0805CSF-101G is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD CER CORE WIRE-WOUND INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CT0805CSF-101G

Description：SMD CER CORE WIRE-WOUND INDUCTOR
Series：ct0805csf
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：-
Inductance：100 nH
Tolerance：±2%
Current Rating (Amps)：-
Current - Saturation (Isat)：-
Shielding：-
DC Resistance (DCR)：460mOhm
Q @ Freq：-
Frequency - Self Resonant：1.2GHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：-
Supplier Device Package：-
Size / Dimension：-
Height - Seated (Max)：-
Features：-

Fixed Inductors datasheet and documents for CT0805CSF-101G

CT0805CSF-101G

Fixed Inductors Overview

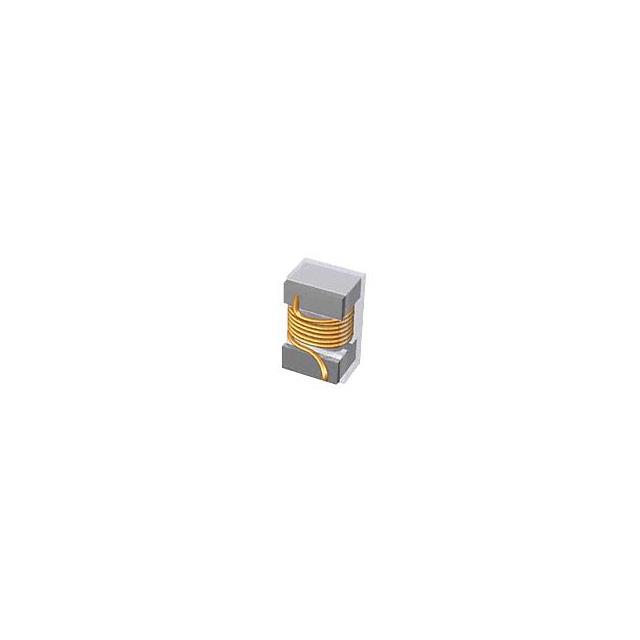

The CT0805CSF-101G is a general purpose wire-wound chip inductor from Central Technologies, housed in an SMD 0805 rectangular package. It features a ceramic core and offers a nominal inductance of 0.1 µH with a tolerance of ±2%. The component has a maximum rated current of 0.65 A and a DC resistance of 0.46 Ω. It operates within a temperature range of -40 °C to 125 °C and is RoHS compliant.

Fixed Inductors Feature Summary

Wire-wound construction on a ceramic core for stable RF performance
High Q factor and self-resonant frequency suitable for RF applications
RoHS compliant manufacturing process

Fixed Inductors Applications

RF inductor circuits
Filter choke applications
General purpose surface mount electronics

Fixed Inductors Procurement Notes

Verify the specific suffix code when ordering to confirm the exact tolerance grade, as indicated in manufacturer documentation. Confirm lead times and availability directly with authorized distributors or the manufacturer, as these details are subject to change and not included in static technical specifications.

Fixed Inductors Selection Notes

Select this component for designs requiring a compact 0805 footprint with precise inductance control. Ensure the operating current does not exceed the 0.65 A rating and that the circuit environment stays within the specified -40 °C to 125 °C temperature range for reliable operation.

Fixed Inductors Part Context

This part belongs to the CT0805CSF series of wire-wound chip inductors by Central Technologies. The series provides various inductance values from low nanohenries up to microhenries, all utilizing a ceramic core and available in the standard 0805 surface mount package format.
