CT0807SQF-6N9J

Fixed Inductors Overview

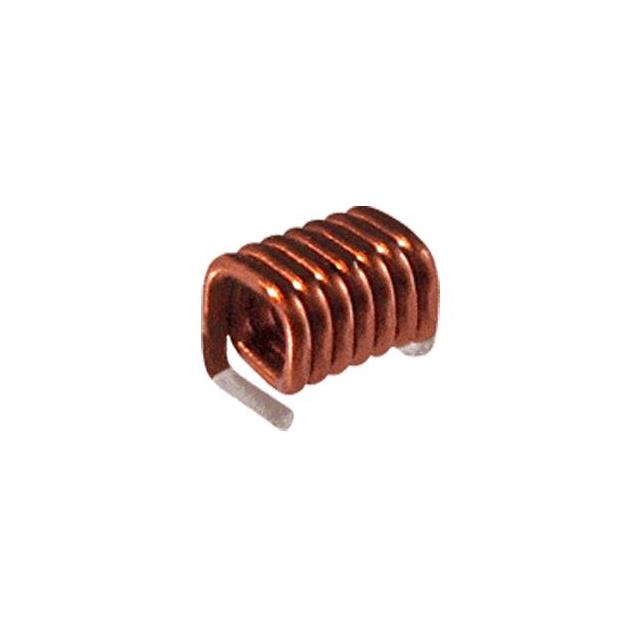

The CT0807SQF-6N9J is a fixed wirewound inductor manufactured by Central Technologies. It features an air core and a surface-mount package with dimensions of 0807. The nominal inductance value is 6.9 nH, and the DC resistance is specified as 6 mOhm. This component is designed for high-frequency applications requiring low parasitic effects.

Fixed Inductors Feature Summary

• Utilizes an open-wire construction on an air core to minimize magnetic losses.
• Square form factor optimized for high-frequency RF signal integrity.
• Surface-mount design facilitates automated assembly processes.

Fixed Inductors Applications

• RF matching networks
• High-frequency impedance transformation
• Broadband circuit tuning

Fixed Inductors Procurement Notes

Verify the specific tolerance code suffix against the manufacturer's ordering guide, as standard codes may vary. Confirm that the 6 mOhm DC resistance aligns with your thermal management requirements. Ensure the 0807 footprint matches your PCB layout constraints before finalizing the purchase order.

Fixed Inductors Selection Notes

Select this component when extremely low inductance values are required for RF circuits. The air core construction ensures linearity under varying current conditions. Consider the 0807 package size for adequate spacing in dense layouts while maintaining high self-resonant frequency characteristics suitable for microwave frequencies.

Fixed Inductors Part Context

This part belongs to the SQF series of square air core inductors from Central Technologies. These components are engineered for performance where ceramic or ferrite cores would introduce non-linearity or saturation issues. The series provides stable inductance values across wide bandwidths, making them distinct from general-purpose chip inductors.

Fixed Inductors Replacement Considerations

Cross-reference with other 0807 square air core inductors such as those from Coilcraft. Verify that substitute parts maintain the same 6.9 nH nominal value and comparable DC resistance to ensure circuit continuity without re-tuning.
