CT622LYF-3R3M

Fixed Inductors Overview

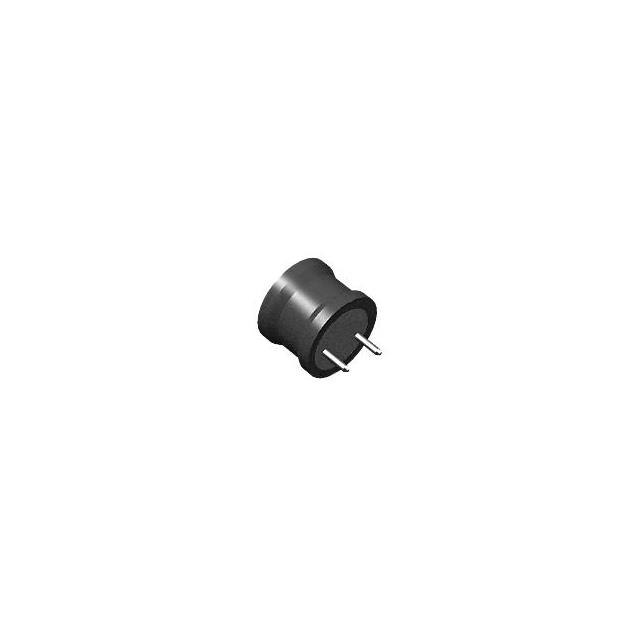

The CT622LYF-3R3M is a fixed radial leaded inductor manufactured by Central Technologies. It features an inductance of 3.3 µH with a tolerance of ±20%. The component has a DC resistance (DCR) of 20 mOhm and a self-resonant frequency of 79 MHz. It supports through-hole mounting and operates within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

• Radial leaded construction for through-hole PCB integration
• High current capability indicated by low DC resistance
• Wide operating temperature range suitable for harsh environments

Fixed Inductors Applications

• Power supply filtering circuits
• Choke applications in high current paths
• General purpose electronic circuitry requiring fixed inductance

Fixed Inductors Procurement Notes

Verify the specific suffix designation against official datasheets to confirm exact electrical tolerances and packaging variations. Ensure the procurement channel provides authentic components from Central Technologies to guarantee performance reliability and compliance with specified thermal and electrical ratings.

Fixed Inductors Selection Notes

Select this component when a 3.3 µH inductance value is required with a ±20% tolerance. Consider the 20 mOhm DCR for efficiency requirements and the 79 MHz self-resonant frequency for high-frequency operation limits. Validate that the through-hole package fits the target board layout constraints.

Fixed Inductors Part Context

This part belongs to the CT622LYF series of radial leaded fixed inductors. It shares the same physical form factor and mounting style as other variants in the series, differing primarily in inductance values and associated electrical characteristics such as saturation current and DC resistance.

Fixed Inductors Replacement Considerations

Cross-reference with other 3.3 µH radial inductors ensuring matching DCR, tolerance, and temperature ratings. Verify pin compatibility and mechanical dimensions before substituting with generic equivalents.
