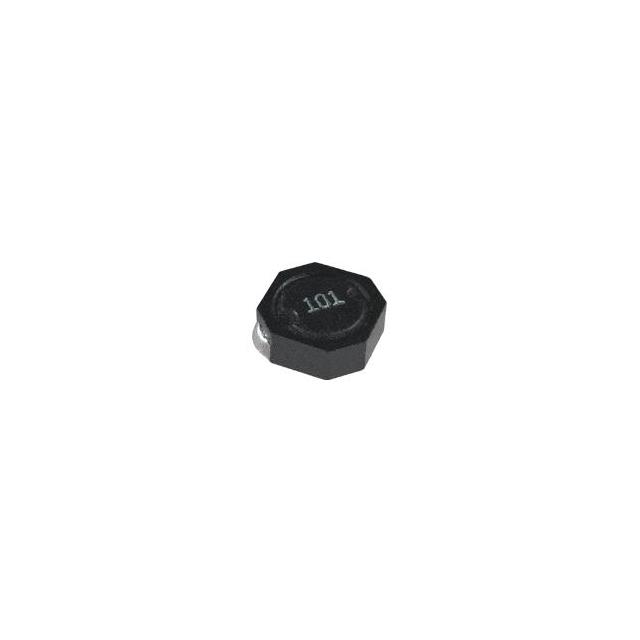

CT914BYF-101M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD SHIELDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CT914BYF-101M
- Description：SMD SHIELDED POWER INDUCTOR
- Series：ct914byf
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：100 µH
- Tolerance：±20%
- Current Rating (Amps)：-
- Current - Saturation (Isat)：-
- Shielding：-
- DC Resistance (DCR)：1.5Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for CT914BYF-101M
Fixed Inductors Overview
The CT914BYF-101M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 100 µH and a DC resistance of 1.5 Ohms. The component operates within a temperature range of -40°C to 85°C and complies with RoHS3 standards. Designed for compact electronic assemblies, this fixed inductor provides stable performance for power supply applications.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- Surface mount design facilitates automated assembly
- Compliant with RoHS3 environmental standards
Fixed Inductors Applications
- Power supplies for VTR equipment
- Office automation equipment power circuits
- LCD television power management
- PC notebook power systems
- Portable communication device power stages
Fixed Inductors Procurement Notes
Verify the specific part number suffix against official Central Technologies documentation to confirm tolerance and packaging details. Ensure compatibility with reflow soldering profiles specified in the datasheet. Confirm RoHS3 compliance status matches project requirements before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component for applications requiring 100 µH inductance with low profile constraints. Consider the 1.5 Ohm DC resistance for efficiency calculations in power delivery networks. Verify thermal management capabilities given the 85°C maximum operating temperature limit for reliable long-term operation.
Fixed Inductors Part Context
This component belongs to the CT914BYF series of shielded power inductors from Central Technologies. The series offers various inductance values tailored for space-constrained portable electronics. These parts are engineered to support high-frequency switching regulators commonly found in modern consumer devices.
Fixed Inductors Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Generic replacements may differ in shielding effectiveness or current ratings. Validate any alternative part against the original specifications for inductance, DCR, and physical dimensions.
