CTCDRH104F-6R8M

Fixed Inductors Overview

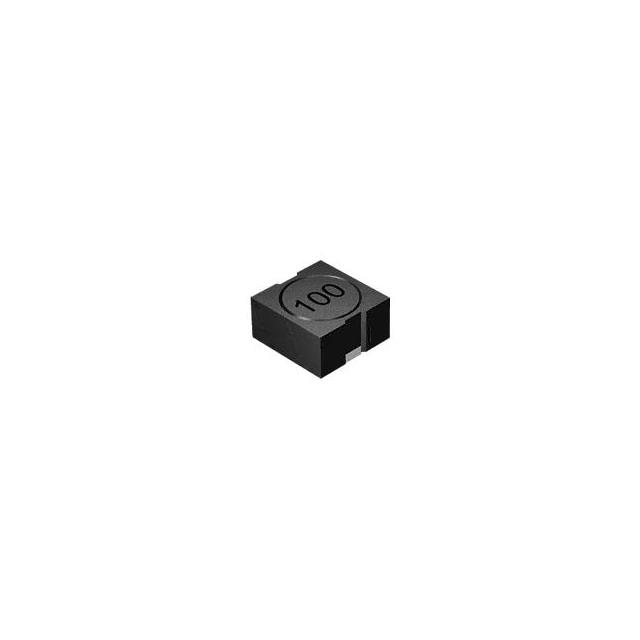

The CTCDRH104F-6R8M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 6.8 µH with a tolerance of ±20%. The component has a maximum DC resistance of 44 mΩ and utilizes a nonstandard footprint suitable for compact designs. This fixed inductor is designed for high-current applications, offering reliable performance in space-constrained electronic circuits.

Fixed Inductors Feature Summary

• Shielded construction to minimize electromagnetic interference
• Surface-mount design for automated assembly
• High current capability with low DC resistance

Fixed Inductors Applications

• Power supply modules
• VTR equipment power systems
• Office automation equipment
• LCD televisions
• Personal computers

Fixed Inductors Procurement Notes

Verify the specific package dimensions against your PCB footprint requirements, as the datasheet indicates a nonstandard size. Confirm that the 6.8 µH inductance value aligns with your circuit's filtering or energy storage needs. Ensure the 44 mΩ DC resistance meets your efficiency targets. Check RoHS compliance status if required by your manufacturing standards.

Fixed Inductors Selection Notes

Select this component when a shielded SMD inductor is required for power conversion stages. The 6.8 µH value is suitable for intermediate frequency filtering. Consider the physical size constraints due to the nonstandard package. Compare saturation current ratings if available in detailed specs to ensure it handles peak loads without degradation.

Fixed Inductors Part Context

This part belongs to the CTCDRH104F series of shielded power inductors from Central Technologies. The series is characterized by its robust construction and suitability for various consumer electronics. The '6R8' suffix denotes the 6.8 µH inductance value, while 'F' typically indicates the tolerance class. It is distinct from unshielded or through-hole variants in the same product line.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 6.8 µH inductance, ±20% tolerance, and similar current handling capabilities. Verify that any replacement component offers comparable shielding effectiveness to prevent noise coupling. Ensure the new part fits within the same spatial constraints, noting the original's nonstandard footprint may limit direct pin-to-pin replacements.
