CTCDRH104RF-5R8

$1.67

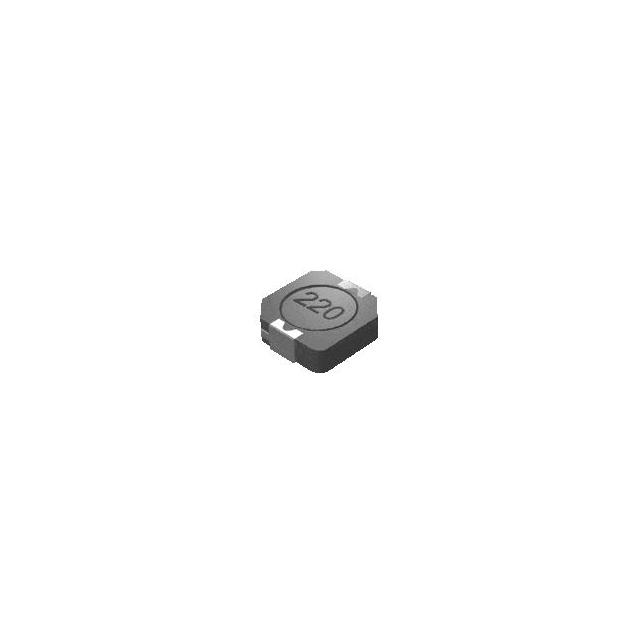

Description：5.8 SMD SHIELDED POWER INDUCTOR
Series：CTCDRH104RF
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:c59215faf294 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTCDRH104RF-5R8 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 5.8 SMD SHIELDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTCDRH104RF-5R8

Description：5.8 SMD SHIELDED POWER INDUCTOR
Series：CTCDRH104RF
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：5.8 µH
Tolerance：±30%
Current Rating (Amps)：-
Current - Saturation (Isat)：5.5A
Shielding：Shielded
DC Resistance (DCR)：22mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 100°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)：0.157" (4.00mm)
Features：-

Fixed Inductors datasheet and documents for CTCDRH104RF-5R8

CTCDRH104RF-5R8

Fixed Inductors Overview

The CTCDRH104RF-5R8 is a shielded wirewound power inductor manufactured by Central Technologies. It features an inductance of 5.8 µH with a tolerance of ±30%. The component has a maximum DC resistance (DCR) of 22 mΩ and supports a current rating of 5.5 A. Designed for surface-mount device (SMD) applications, it measures 10 × 10 × 3.8 mm. The operating temperature range spans from -40°C to +100°C.

Fixed Inductors Feature Summary

Shielded wirewound construction for reduced electromagnetic interference
Surface-mount design suitable for automated assembly processes
Wide operating temperature range for reliable performance

Fixed Inductors Applications

Power supply filtering circuits
DC-DC converter input/output stages
General-purpose electronic equipment power management

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct inductance value and tolerance specifications. Confirm package dimensions and mounting type compatibility with your PCB layout requirements before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a 5.8 µH inductance value is required with high current handling capabilities up to 5.5 A. Ensure the 22 mΩ DCR meets efficiency targets and that the 10x10mm footprint fits within the available board space constraints.

Fixed Inductors Part Context

This component belongs to the CTCDRH104RF series of fixed inductors from Central Technologies. The series offers various inductance values tailored for power electronics applications, providing shielded performance to minimize magnetic field interference in dense circuit layouts.
