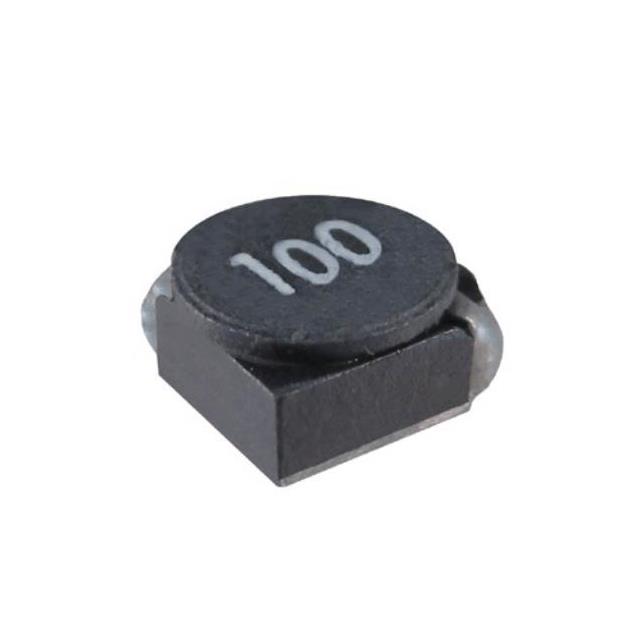

CTCDRH5D28F-5R3N is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 5.3UH SMD SHIELDED POWR INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTCDRH5D28F-5R3N
- Description：5.3UH SMD SHIELDED POWR INDUCTOR
- Series：CTCDRH5D28F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：5.3 µH
- Tolerance：±30%
- Current Rating (Amps)：-
- Current - Saturation (Isat)：1.9A
- Shielding：Shielded
- DC Resistance (DCR)：38mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-30°C ~ 100°C
- Inductance Frequency - Test：10 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.224" L x 0.224" W (5.70mm x 5.70mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Fixed Inductors datasheet and documents for CTCDRH5D28F-5R3N
Fixed Inductors Overview
The CTCDRH5D28F-5R3N is a shielded surface-mount power inductor from Central Technologies, featuring a nominal inductance of 5.3 µH with a standard tolerance. It utilizes a rectangular package design suitable for automated assembly processes. The component operates within a temperature range of -25 °C to 80 °C and includes matte tin terminations compliant with RoHS standards.
Fixed Inductors Feature Summary
- Shielded magnetic structure minimizes electromagnetic interference
- Surface-mount configuration enables compact circuit board integration
- RoHS compliant construction supports environmental safety requirements
Fixed Inductors Applications
- Power supply filtering circuits
- DC-DC converter energy storage
- General purpose signal processing
Fixed Inductors Procurement Notes
Verify the specific suffix 'F' confirms RoHS compliance status as documented in official datasheets. Confirm the inductance value matches the required 5.3 µH specification for the target application. Ensure the operating temperature range aligns with the system's thermal environment constraints before finalizing procurement decisions.
Fixed Inductors Selection Notes
Select this component when a low-inductance, shielded solution is required for high-frequency switching applications. The rectangular form factor aids in space-constrained layouts. Verify that the maximum rated current exceeds the peak load requirements to prevent saturation issues during operation.
Fixed Inductors Part Context
This part belongs to the CTCDRH5D28 series of fixed inductors manufactured by Central Technologies. The series offers various inductance values ranging from microhenries to higher ranges, all sharing similar physical dimensions and shielding characteristics for consistent performance across designs.
Fixed Inductors Replacement Considerations
Consult official substitution lists for direct equivalents. Cross-reference pinout compatibility and electrical parameters such as DC resistance and saturation current when evaluating alternative components from other manufacturers.
