CTCH895F-102K

Fixed Inductors Overview

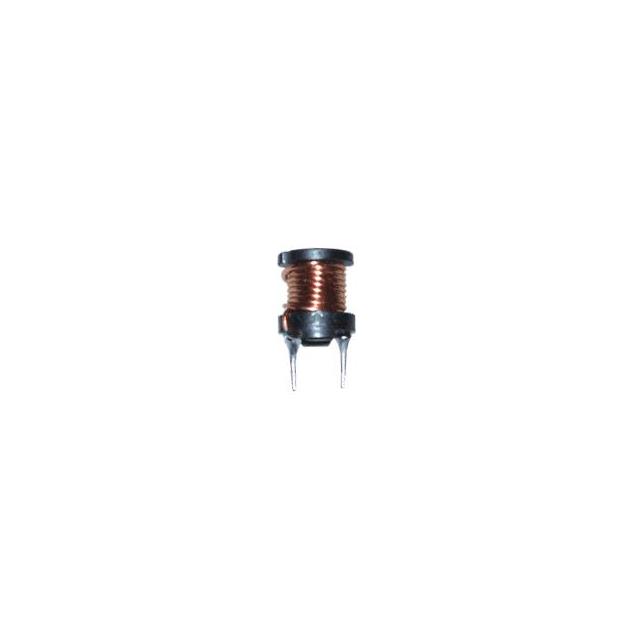

The CTCH895F-102K is a fixed radial inductor from Central Technologies, featuring a nominal inductance of 1000 µH (1 mH) with a ±10% tolerance. It has a maximum DC resistance of 1.84 Ω and a bobbin construction. The component is unshielded, designed for through-hole mounting with radial leads measuring 0.7 mm in diameter. It is classified as a general-purpose inductor suitable for DC-DC converter applications.

Fixed Inductors Feature Summary

• Bobbin-type construction for structural stability
• Unshielded design for general-purpose signal handling
• Radial lead configuration for standard PCB mounting

Fixed Inductors Applications

• DC-DC converter circuits
• General purpose filtering
• Signal peaking coils

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet to confirm current ratings and thermal characteristics, as external sources may vary. Ensure the ordering suffix matches the required tolerance grade. Confirm compliance with RoHS standards and lead-free requirements before finalizing procurement specifications for production integration.

Fixed Inductors Selection Notes

Select this component when a 1000 µH inductance value is required for DC-DC conversion or general filtering tasks. Consider the 1.84 Ω DC resistance impact on circuit efficiency. The radial package requires appropriate hole spacing on the PCB layout. Verify that the operating current does not exceed the rated limits defined in the official technical documentation.

Fixed Inductors Part Context

This part belongs to the CTCH895F series of peaking coils and fixed inductors manufactured by Central Technologies. The series offers various inductance values ranging from 10 µH to higher capacities, utilizing a consistent radial bobbin format. The '102' code indicates the specific 1000 µH variant within this product line.

Fixed Inductors Replacement Considerations

Direct substitutes include other parts from the CTCH895F series with identical electrical parameters but different inductance values if system requirements change. Cross-reference with generic radial inductors only if they match the 1000 µH nominal value, 1.84 Ω max DCR, and radial footprint dimensions exactly.
