CTDS3316PF-473

Fixed Inductors Overview

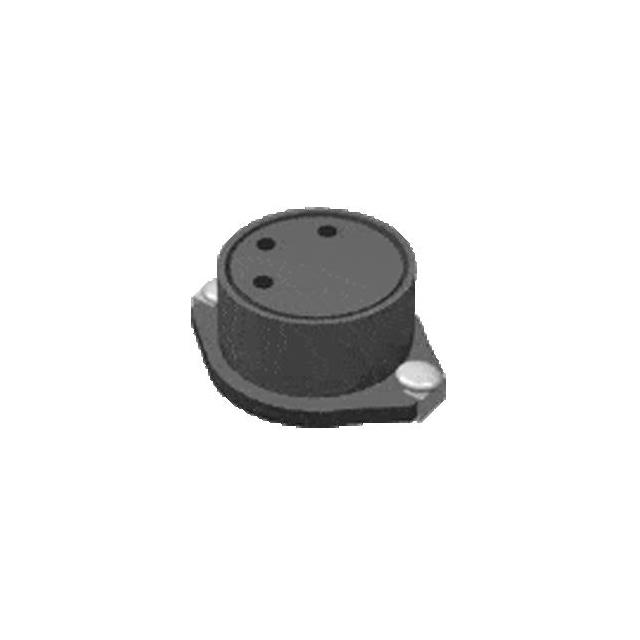

The CTDS3316PF-473 is a shielded wirewound power inductor manufactured by Central Technologies. It features an inductance of 47 µH with a nonstandard form factor suitable for surface mount applications. The component supports a maximum current rating of 1.8 A and exhibits a DC resistance of 140 mΩ. Designed for robust performance, it utilizes a shielded construction to minimize electromagnetic interference. This fixed inductor is intended for integration into electronic circuits requiring reliable energy storage and filtering capabilities within compact board layouts.

Fixed Inductors Feature Summary

• Shielded wirewound construction minimizes external magnetic field interference
• Designed for surface mount technology (SMD) integration
• Fixed inductance configuration for stable circuit operation

Fixed Inductors Applications

• Power supply input and output filtering
• DC-DC converter energy storage
• General purpose power electronics circuits

Fixed Inductors Procurement Notes

Verify the specific suffix 'F' indicates RoHS compliance status as per manufacturer documentation. Confirm that the 140 mΩ DC resistance value aligns with thermal management requirements for the target application. Ensure the 1.8 A current rating accommodates peak load conditions without saturation. Cross-reference the physical dimensions against the PCB footprint to guarantee mechanical fitment during assembly.

Fixed Inductors Selection Notes

Select this component when a shielded SMD inductor is required for power stages. The 47 µH value suits moderate frequency switching applications. Consider the 1.8 A rating against continuous and peak load demands. The shielded design is advantageous where EMI sensitivity exists. Evaluate the 140 mΩ resistance impact on overall system efficiency and heat dissipation constraints.

Fixed Inductors Part Context

This part belongs to the DS3316P series of power inductors from Central Technologies. The series offers various inductance values tailored for different power levels. The CTDS3316PF-473 specifically addresses needs for higher current handling in a shielded package. It complements other components in the same family offering different inductance or tolerance specifications.

Fixed Inductors Replacement Considerations

Datasheet references indicate potential obsolescence or replacement within the DS3316P line. Verify if newer part numbers have superseded this specific model. Check compatibility with existing footprints if substituting with similar shielded SMD inductors from other manufacturers.
