CTHCCI1090F-1R0M

Fixed Inductors Overview

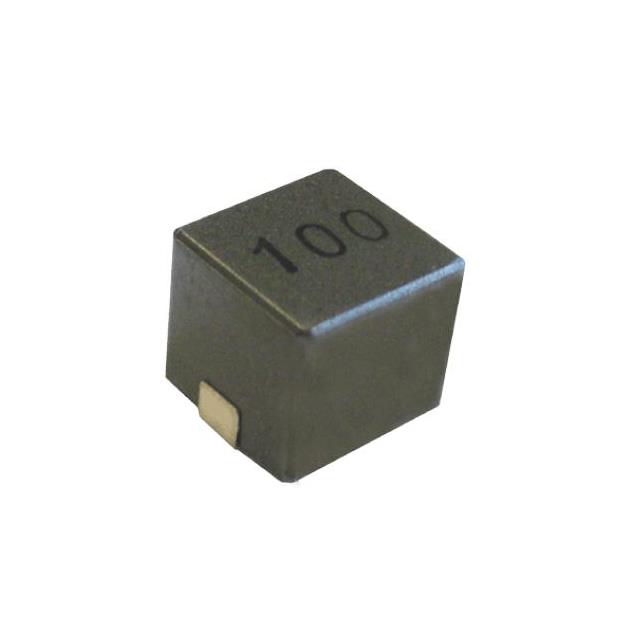

The CTHCCI1090F-1R0M is a surface-mount shielded power inductor manufactured by Central Technologies. It features a 1 µH nominal inductance with a ±20% tolerance, as indicated by the '1R0' designation and 'M' suffix. The component operates at a standard test frequency of 100 kHz. It is designed for high-current applications, utilizing a shielded construction to minimize electromagnetic interference. The device is lead-free and RoHS compliant, suitable for modern electronic assemblies requiring reliable magnetic components.

Fixed Inductors Feature Summary

• Shielded power inductor design for reduced electromagnetic interference
• Surface mount technology for automated assembly
• Lead-free and RoHS compliant construction

Fixed Inductors Applications

• DC-DC converter circuits
• Power supply filtering
• Telecommunications equipment

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for precise DC resistance and saturation current values, as these critical parameters are not fully detailed in the provided source text. Confirm that the '1R0M' designation aligns with the required 1 µH inductance and tolerance specifications for your circuit design. Ensure compatibility with surface-mount reflow processes.

Fixed Inductors Selection Notes

Select this component when a shielded power inductor with 1 µH inductance is required for space-constrained designs. The shielded structure helps contain magnetic fields, making it suitable for dense PCB layouts. Verify that the operating current requirements fall within the unlisted saturation limits specified in the official Central Technologies documentation.

Fixed Inductors Part Context

This part belongs to the CTHCCI series of shielded power inductors from Central Technologies. The series is characterized by surface-mount packaging and high-quality magnetic materials. These components are generally used in applications demanding reliable performance in power conversion systems.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's cross-reference guide or authorized distributors for verified alternatives.
