CTHCCI1210F-1R0M

Fixed Inductors Overview

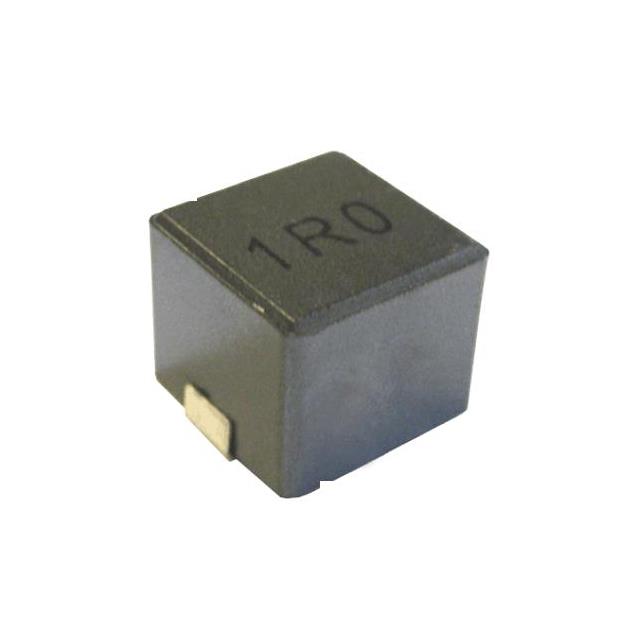

The CTHCCI1210F-1R0M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a wirewound construction with a nominal inductance of 1 µH and a tolerance of ±20%. The component operates within a temperature range of -55°C to +125°C and is tested at a frequency of 100 kHz. Its physical dimensions are 13.30mm in length, 11.70mm in width, and 10.90mm in height, corresponding to the 1210 footprint.

Fixed Inductors Feature Summary

• Shielded magnetic structure designed to minimize electromagnetic interference
• Wirewound core technology for stable power delivery
• Surface-mount package optimized for automated assembly processes

Fixed Inductors Applications

• DC-DC converter output filtering
• Point-of-load regulation circuits
• General-purpose power supply applications

Fixed Inductors Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status directly with the supplier or original datasheet before procurement. Ensure the ordering quantity matches the required production volume while accounting for standard distributor minimums.

Fixed Inductors Selection Notes

Select this component when a shielded power inductor with a 1 µH rating is required for space-constrained designs. The 1210 package size offers a balance between current handling capability and board area efficiency. Consider the thermal performance and saturation characteristics relative to the specific circuit load requirements.

Fixed Inductors Part Context

This part belongs to the CTHCCI series of shielded power inductors from Central Technologies. The series provides various inductance values suitable for modern electronic power management systems. The 1210 form factor is widely used in consumer electronics and industrial equipment requiring reliable passive components.

Fixed Inductors Replacement Considerations

Direct substitutes include other 1 µH shielded SMD power inductors from different manufacturers that match the 1210 footprint and electrical specifications. Verify pin compatibility and thermal ratings before substitution.
