CTLL1005SF-27NJ

Fixed Inductors Overview

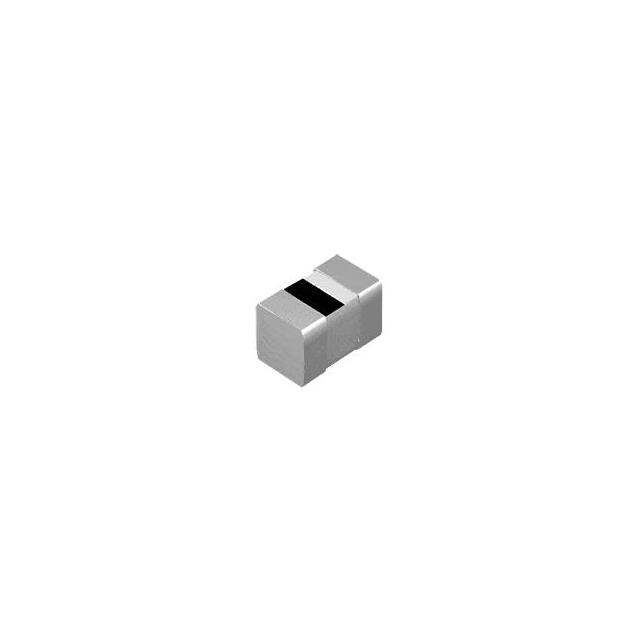

The CTLL1005SF-27NJ is a fixed inductor manufactured by Central Technologies. It features an inductance of 27 nH with a maximum DC resistance of 700 mOhm and a current rating of 300 mA. The component utilizes a multilayer ceramic construction and is housed in a surface-mount package measuring 1005 metric (0402). This unshielded design is intended for high-frequency applications requiring compact form factors.

Fixed Inductors Feature Summary

• Multilayer ceramic construction for stable performance
• Unshielded design suitable for general RF circuits
• Compact 0402 (1005 metric) surface-mount footprint

Fixed Inductors Applications

• RF matching networks
• High-frequency signal filtering
• Impedance matching circuits

Fixed Inductors Procurement Notes

Verify the exact physical dimensions against the 1005 metric standard to ensure PCB compatibility. Confirm that the unshielded nature aligns with the electromagnetic interference requirements of the target circuit design before finalizing procurement.

Fixed Inductors Selection Notes

Select this component when a low inductance value near 27 nH is required in a minimal footprint. Ensure the 300 mA current limit meets the operational demands of the application, as exceeding this may affect performance or reliability.

Fixed Inductors Part Context

This part belongs to the CTLL series of multilayer chip inductors from Central Technologies. These components are designed for use in space-constrained electronic assemblies where reliable inductive behavior at high frequencies is necessary without the bulk of shielded alternatives.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 27 nH inductance, 0402 package size, and similar current handling capabilities. Verify that alternative suppliers offer unshielded multilayer variants with comparable DC resistance specifications.
